Disconnect electrical connector - AR42.10-P-1040-04TV

1. Press detent (1) upwards with screwdriver and pull RPM sensor connector (signals) (X62) out of the bracket (2) in the direction of the arrow.
2. Press detent (3) upwards with screwdriver and pull left front brake pad contact sensor connector (S10/1x1) and right front brake pad contact sensor connector (S10/2x1) out of the bracket (2) in the direction of the arrow.

   Illustration in mirror reverse to front right longitudinal member

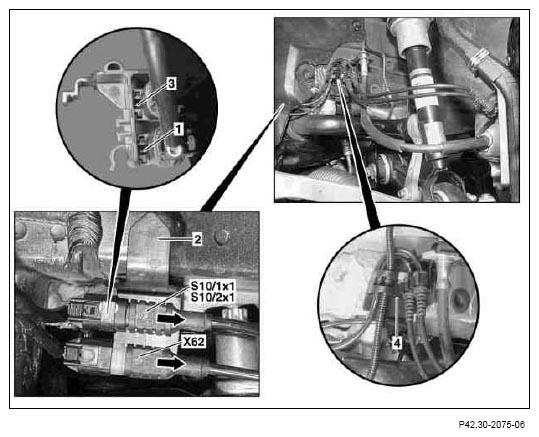

   Fig 1: Pulling Front Brake Pad Contact Sensor Connectors Out Of Bracket

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Unlock and disconnect RPM sensor connector (signals) (X62) and brake pad contact sensor.
4. Unclip electrical cable from bracket (4) on side member.

Installation:  Ensure lines are installed correctly.
