Brakes -- Location, Removal & Installation -- E550 (211.072)
>>
Basic Knowledge
>>
Adaptive brake (ABR), block diagram - GF42.47-P-0001-03TM
Adaptive brake (ABR), block diagram - GF42.47-P-0001-03TM

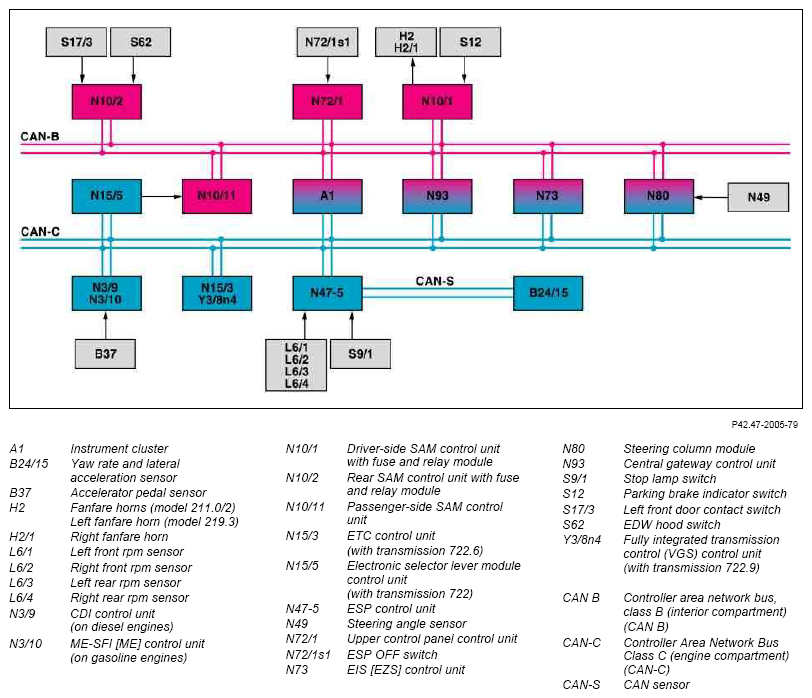

Fig 1: Adaptive Brake Block Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
