Brakes -- Location, Removal & Installation -- E550 (211.072)
>>
Basic Knowledge
>>

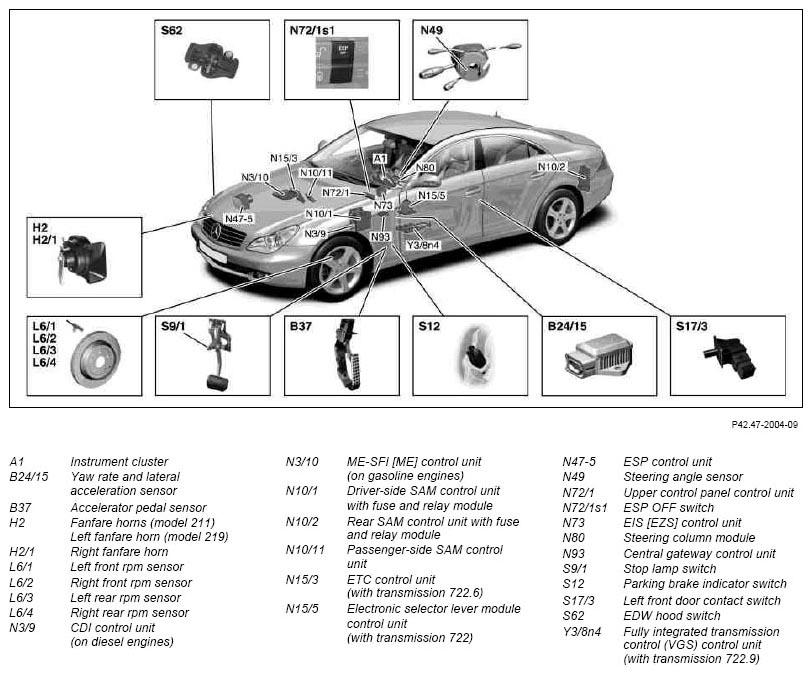

Adaptive Brake (ABR) location of components - GF42.47-P-0001-02TM
Adaptive Brake (ABR) location of components - GF42.47-P-0001-02TM
Shown on model 219
Fig 1: Locating Adaptive Brake Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
