Remove/install rear door control unit - AR72.29-P-1100T

MODEL 211.0/2

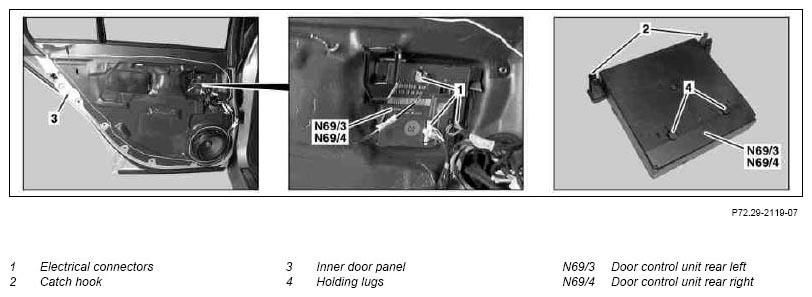

Fig 1: Identifying Rear Door Control Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left rear door

MODIFICATION NOTES

6.6.06

"Disconnect/connect battery ground line" removed

	Remove/install
1	Remove rear door lining	On vehicles except code (Z04) Light armoring	AR72.12-P-1010T
		On model 211.065/070 with code (Z04) Light armoring	AR72.12-P-1010TG
2	Separate electrical connectors (1)
3	Unclip left rear door control unit (N69/3) and right rear door control unit (N69/4) on catch hooks (2) from inner door panel (3)	Press catch hooks (2) together with suitable pliers. Installation:  Ensure that holding lug (4) is seated properly in inner door panel (3)
4	Install in the reverse order
