Remove/install mat cover on front door lining - AR72.10-P-1030-01T

Shown on door lining with air duct

Detach

1. Carefully detach mat cover (1).

   Mat cover (1) must be loosened carefully so that ribbon cable (2) cannot be damaged.

   Remove glue residues from front door lining (3) if used again.

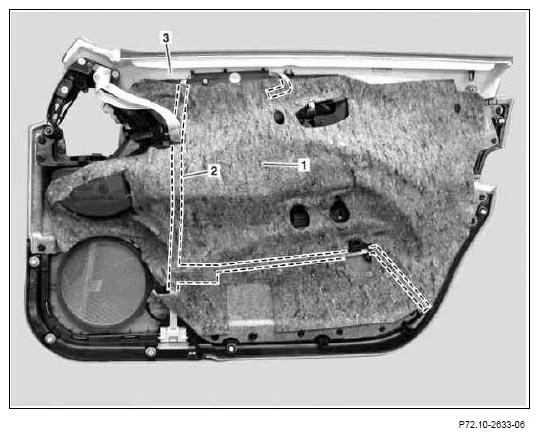

   Fig 1: Identifying Mat Cover, Ribbon Cable And Front Door Lining

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Attach

1. 2.1 Remove air duct cutout (6).

   Only on vehicles with code (581b) Comfort automatic air conditioning

2. 3 Remove protective foil from adhesive surface, align mat cover (1) over door lining (3) and glue on.

   When gluing down the cover mat (1) press down over the full surface to eliminate draft.

   The plastic bonding nubs (4) and the door opener (5) must be exposed and must not be glued over with the mat cover (1).

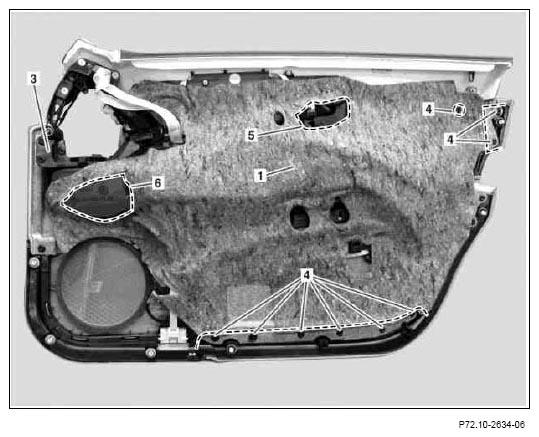

   Fig 2: Identifying Mat Cover, Air Duct Cutout, Door Lining And Plastic Bonding Nuts
