Adjust clearance - AR72.10-P-4011-02P
FRONT DOOR
| Number | Designation | Model 171 | Model 211 | |
|---|---|---|---|---|
| BA72.10-P-1011-01AB | Screw, self-adjusting clearance | Nm | 9 | 9 |
FRONT DOOR
| Number | Designation | Model 203 | Model 209 | |
|---|---|---|---|---|
| BA72.10-P-1012-01A | Screw, self-adjusting clearance | Nm | 9 | 9 |
FRONT DOOR
| Number | Designation | Model 219.3 | |
|---|---|---|---|
| BA72.10-P-1014-01M | Screw, self-adjusting clearance | Nm | 9 |

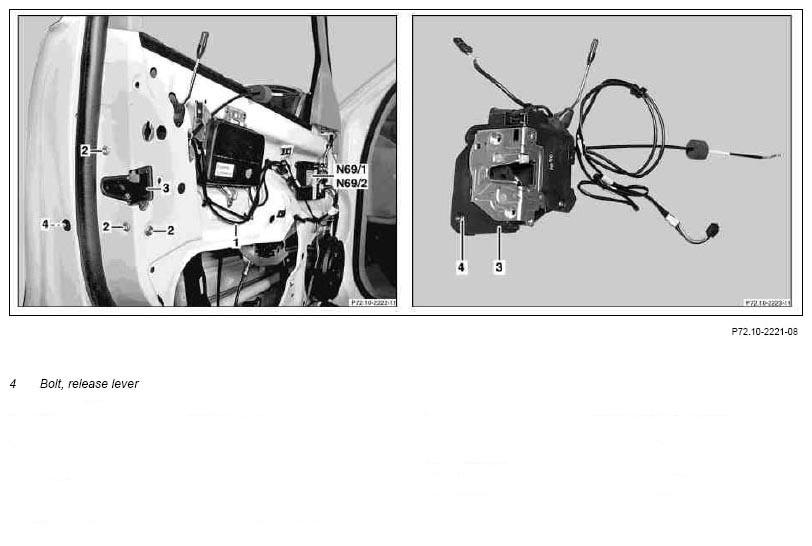

Illustrated on Model 203.0
- Remove cap above release lever bolt (4).
- Loosen bolt on release lever (4).
Left door, right-hand thread, right door, left-hand thread.
- Completely pull door handle toward outside.
- Release door handle abruptly from maximum pulled position.
- Manually push door handle against door paneling with moderate force.
- Install cap above bolt on release lever (4)
.
- Tighten bolt on release lever (4)
