Power windows (PW), location of components - GF72.29-P-0003-01T

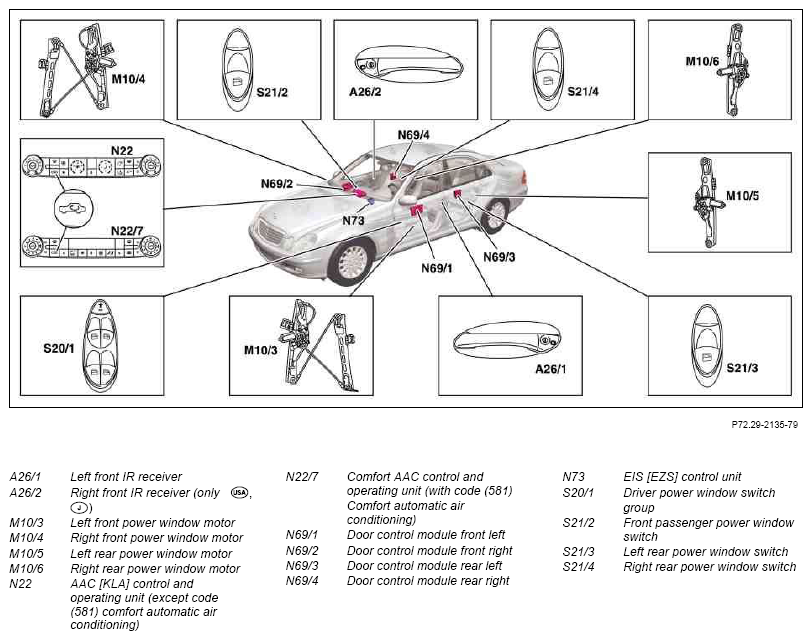

Fig 1: Locating Power Windows Components

G07505118

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0
