Remove/install wind deflector - AR77.20-P-2500T
MODEL 211.0/2, 240.0 with CODE (414) Power glass tilting/sliding roof
MODEL 240.1 with CODE (418) Glass tilting/sliding roof in rear
Shown on model 211.0
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open tilting/sliding roof | ||
| 2.1 | Unclip sealing rail (1) with suitable screwdriver. | On model 211.0/2, 240.0 | |
| 2.2 | Unscrew bolts from sealing rail (1) and remove sealing rail (1). | On model 240.1 | |
| 3.1 | Slightly press down wind deflector (2) on one side until height stop (4) is exposed. | Model 211.0/2 | |
| 4 | Press wind deflector (2) off toward center of vehicle on one side with assembly wedge (6) | ||

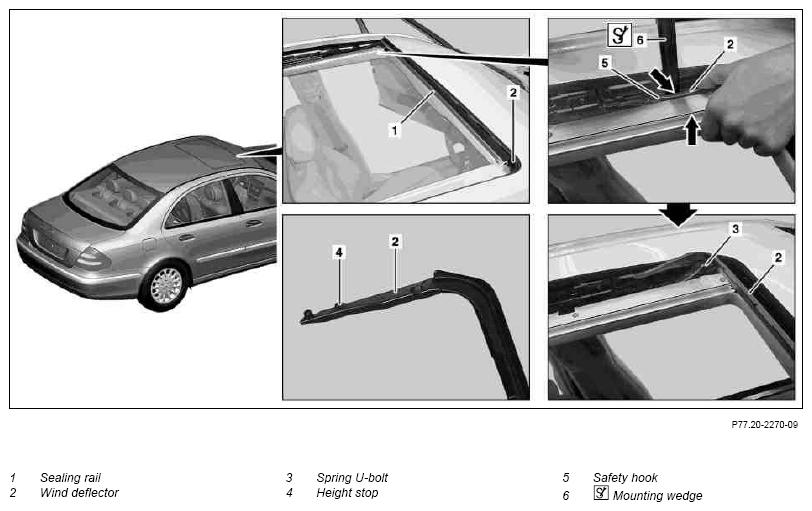

| Figure | |||
| 5 | Slightly lift wind deflector (2), unhook on the other side and remove. | ||
| 6 | Install in the reverse order | ||
| 7 | Perform teach-in run for sliding roof anti-pinch protection | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
