Remove/install rear panoramic glass roof paneling - AR77.21-P-0630T
MODEL 211.0 with CODE (413) Panoramic sliding roof
MODEL 211.0
with CODE (413) Panoramic sliding roof
with CODE (419) Solar module for panoramic roof
| Remove/Install | |||
|---|---|---|---|
| 1 | Open roller sun blind | ||
| 2 | Loosen Velcro strips (3) of rear paneling (1) on left and right side | ||

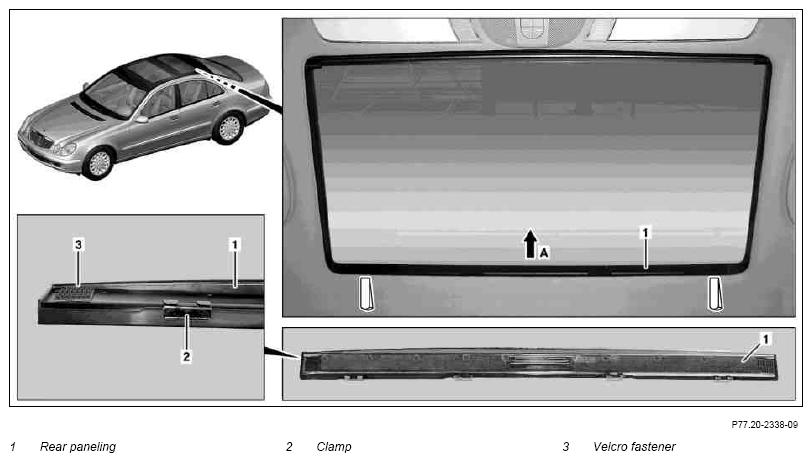

| 3 | Unclip clamps (2) for rear paneling (1) in direction of arrow (A) using mounting wedge and remove rear paneling (1)* | Figure | |
| 4 | Unclip roller sun blind terminal strip (4) out of sun shade couplings (6) by turning in direction of arrow (B) on left and right side of vehicle simultaneously* | ||
| 5 | Move out sun shade terminal strip (4) | ||
| 6 | Move sun shade couplings (6) toward front on left and right sides of vehicle | ||

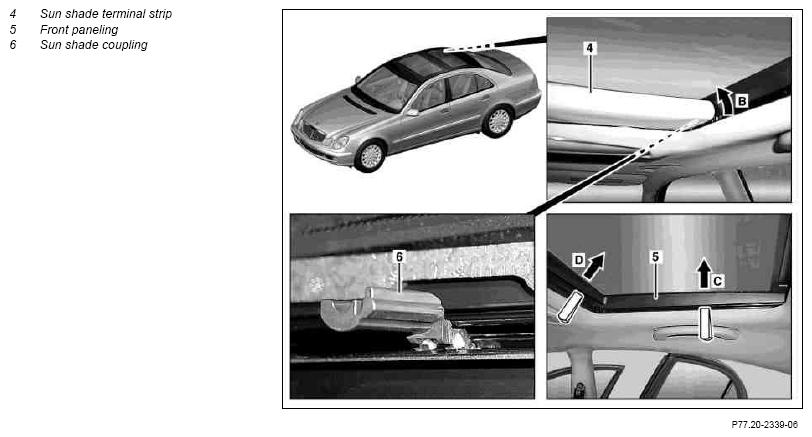

| 7 | Unclip side fastening for front paneling (5) in direction of arrow (C) on left and right sides of vehicle with mounting wedge* | Figure | |
| 8 | Unclip front paneling (5) in direction of arrow (D) with mounting wedge and remove* | Figure | |
| 9 | Install in the reverse order |
