Remove/install panoramic roof wind deflector coupling arm* - AR77.21-P-0110T

MODEL 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0

with CODE (413) Panoramic sliding roof

with CODE (419) Solar module for panoramic roof

Shown on left side of vehicle

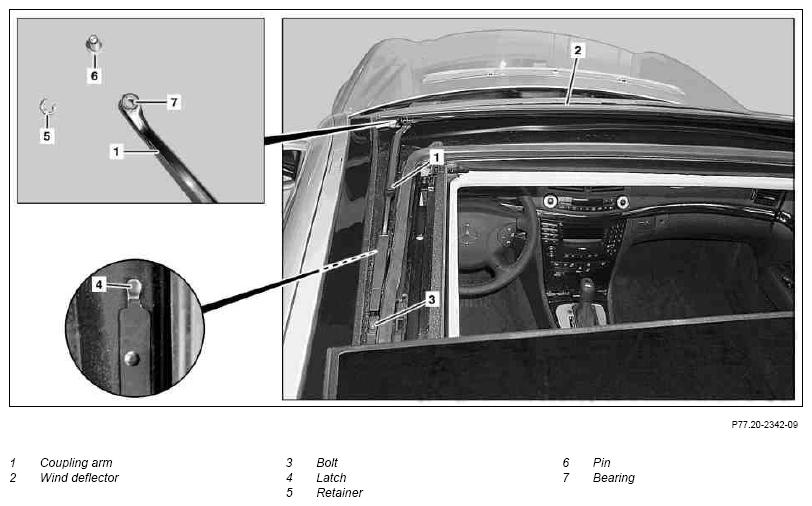

Fig 1: Identifying Panoramic Roof Wind Deflector Coupling Arm Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open panoramic roof	See Operating Instructions
2	Cover guide rail in area of coupling arm (1) with clean rag
3	Pull out retainer (5) and press out bolt (6)	Note correct installation positions.
4	Unscrew bolt (3).
5	Push coupling arm (1) toward front out of latch (4) beneath and remove*
	Install
6	Insert coupling arm (1) into latch (4) from front *
7	Screw in bolt (3)	Do not tighten bolt (3) fully.
8	Insert pin (6) and push retainer (5) into groove on pin (6)*	Note correct installation positions. Pin (6) should not have any perceptible play in the bearing (7); if necessary, replace bearing (7), pin (6) and retainer (5).*
9	Open and close wind deflector (2) several times by hand*
10	Tighten bolt (3)
11	Close panoramic roof	See Operating Instructions
