Remove/install panoramic roof wind deflector - AR77.21-P-0100T

MODEL 211.0 with CODE (413) Panoramic sliding roof

Shown on left side of vehicle

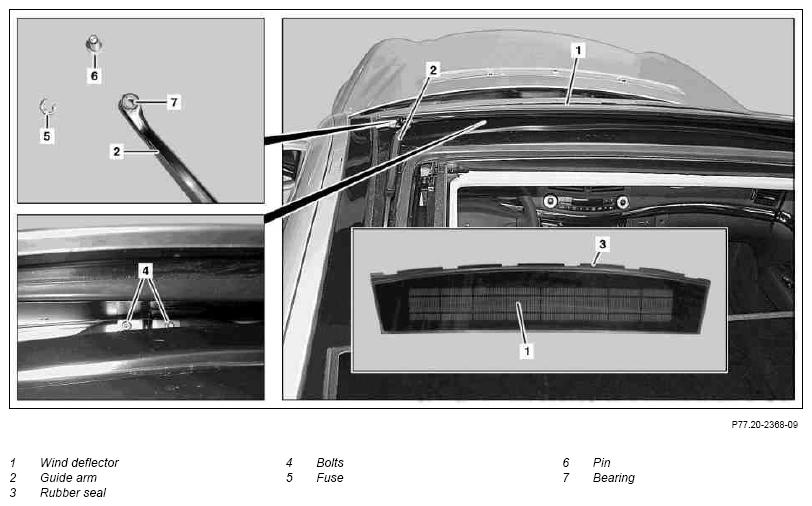

Fig 1: Identifying Panoramic Roof Wind Deflector Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open panoramic roof
2	Remove ornamental frame on windshield.	Installation:  Rubber seal (3) must be pinched tightly together with the windshield ornamental frame.	AR67.10-P-1200T
3	Cover guide rail in area of coupling arm (2) with clean rag
4	Pull out retainer (5) and press out bolt (6)	Installation:  Installation position must be observed. Bolts (6) in bearing (7) should not have perceptible play, if necessary replace bearing (7), bolt (6) and retainer (5).
5	Remove bolts (4)
6	Remove wind deflector (1)	Rubber seal can be glued (3), loosen carefully. Installation:  When replacing wind deflector (1) use template included.
7	Install in the reverse order
