Remove/install drain trough on tilting/sliding roof - AR77.20-P-1999T
MODEL 211.0/2, 240.0 with CODE (414) Power glass tilting/sliding roof
MODEL 240.1 with CODE (418) Glass tilting/sliding roof in rear
Shown on model 211.0
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Completely open sliding roof lining (1) | ||
| 2 | Open tilting/sliding roof approx. 20 cm | ||

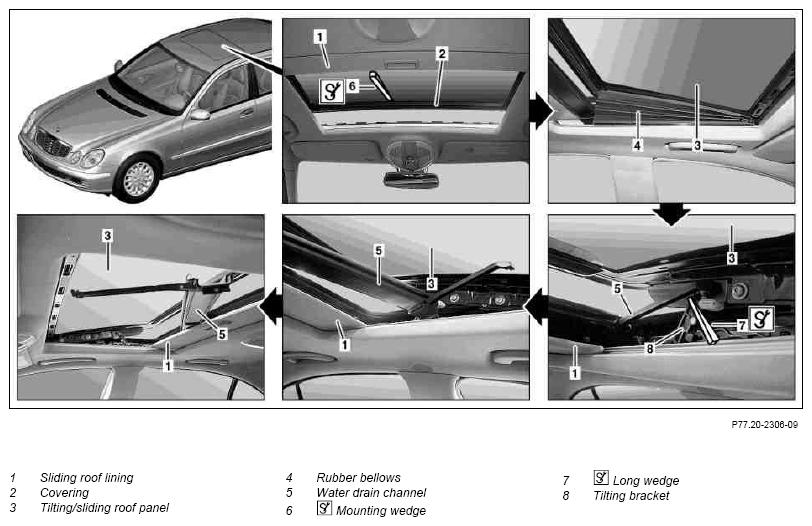

| 3 | Unclip covering (2) in center and side with assembly wedge(6), guide covering (2) out of left and right rubber bellows (4). | Figure | |
| 4 | Completely close tilting/sliding roof and move tilting/sliding roof (3) to tilt position. | ||
| 5 | Remove both rubber bellows (4) at top and bottom and remove. | ||
| 6 | Press rain trough (5) on left and right out of tilting bracket (8) using long wedge (7). | Figure | |
| 7 | Slide in rain trough (5) on passenger side between sliding roof lining (1) and roof paneling and pull out on driver side and remove. | ||
| 8 | Install in the reverse order | ||
| 9 | Perform teach-in run for sliding roof anti-pinch protection | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
