Prepare panoramic roof frame for installation - AR77.21-P-0800-02T

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1031-02A	Repair kit, installing window 500662 01/03/05/07/09/11	A 973 670 00 93

Cut remaining glue on roof paneling off with multicutter and cutting blade, remove loose glue.
Not more than 0.2 mm should remain
Apply cleaner from repair kit with lint-free rag in gluing area of roof paneling, then dry with second rag.
Repair paint damage on roof paneling with primer pin.
The gluing surfaces of the panoramic roof frame (1) must be free of oil, grease, wax and other cohesive components and dirt residues.

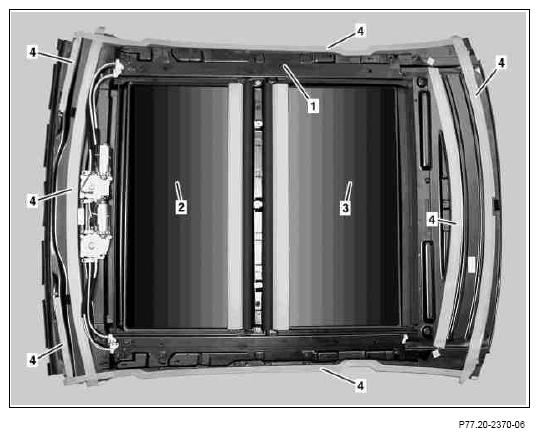

Fig 2: Identifying Panoramic Roof Frame, Front Glass Roof, Rear Glass Roof And Adhesive Foils
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Apply primer in the gluing area in the event of damaged or missing glue on the roof paneling.
Check panoramic roof frame (1), wind deflector, front glass roof (2) and rear glass roof (3) for damage and scratches.
Install suction cup on outside of front glass roof (2) and rear glass roof (3).
Do not install suction cup on wind deflector.
Remove adhesive foils (4) from gluing surfaces on panoramic roof frame (1).
