Adjust tilting/sliding roof panel - AR77.20-P-1100T

MODEL 211.e/2 with CODE (414) Power glass tilting/sliding roof

MODEL 24e.1 with CODE (418) Glass tilting/sliding roof in rear

Shown on model 211.0

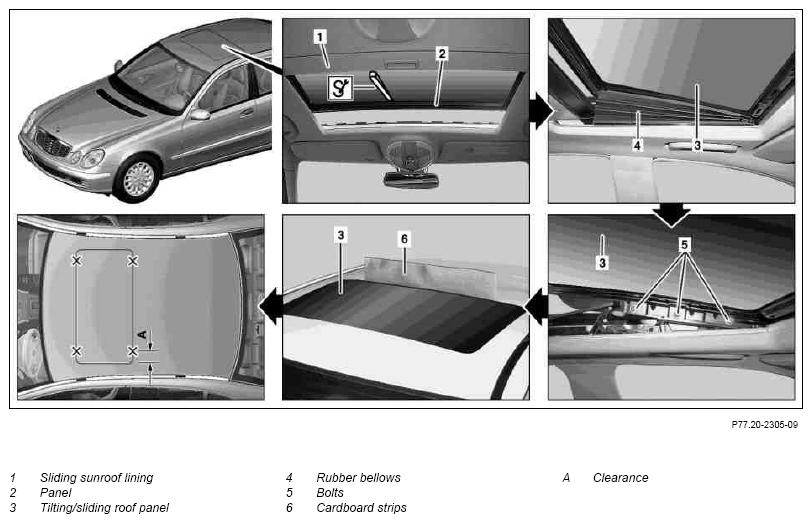

Fig 1: Identifying Tilting/Sliding Roof Panel Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Completely open sliding roof lining (1)	See Operator's Manual
2	Open tilting/sliding roof approx. 20 cm	See Operator's Manual
3	Unclip covering (2) in center and side with assembly wedge and guide covering (2) out of left and right rubber bellows (4)		Figure
4	Completely close tilting/sliding roof and then move to tilt position	See Operator's Manual
5	Remove both rubber bellows (4) at top and bottom and remove	Treat rubber bellows (4) carefully to prevent damage. Observe installation position of rubber bellows (4).
6	Close tilting/sliding roof	See Operator's Manual
	Adjust
7	Loosen bolts (5) on left and right on tilting/sliding roof panel (3)
8	Insert cardboard strips (6) at rear into expansion joint for tilting/sliding roof panel (3)	Cardboard strip (6): Approx. 500 mm long and approx. 2 mm thick.
9	Adjust tilting/sliding roof panel (3) in relation to exterior roof surface	When adjusting height: Determine measuring positions (crosses) using interval (A). Gap dimensions	*BE77.20-P-1001-01A
		Height setting	*BE77.20-P-1002-01A
10	Tighten left and right bolts (5) on tilting/sliding roof panel (3)	Tighten bolts (5) from rear to front.	*BA77.20-P-1004-01A
11	Check tilting/sliding roof for proper function and fit
	Install
12	Move tilting/sliding roof to pop-up position	See Operator's Manual
13	Insert both rubber bellows (4) at top and bottom into guides	Observe correct installation position.
14	Close tilting/sliding roof	See Operator's Manual
15	Open tilting/sliding roof approx. 20 cm	See Operator's Manual
16	Position covering (2) in center and clip in	Left and right catch hook on covering (2) must arrest in both rubber bellows (4).
17	Close tilting/sliding roof	See Operator's Manual
18	Close sliding roof lining (1).	See Operator's Manual
19	Perform teach-in run for sliding roof anti-pinch protection
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

TEST AND ADJUSTMENT VALUES FOR TILTING/SLIDING ROOF

Number	Designation			Model 211	Model 240
BE77.20-P-1001-01A	Gap dimensions	Tilting/sliding roof cover, front	mm	0.15	0.15
		Tilting/sliding roof cover, on side and rear	mm	0,30	0,30
BE77.20-P-1002-01A	Height setting	Measuring position "A" (x)	mm	140	140
		Front: deeper than outer skin of roof	mm	0 to 1	0 to 1
		Rear: higher than outer skin of roof	mm	0 to 1	0 to 1

ELECTRIC SLIDING ROOF

Number	Designation		Model 211	Model 240
BA77.20-P-1004-01A	Bolt, tilting/sliding roof cover to tilt angle bracket	Nm	4	4

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
