Sliding/pop-up roof motor, location/purpose/function - GF77.20-P-4105T
MODEL 211.0/2 with CODE (414a) Electric glass sliding/pop-up roof
Shown on model 211.0

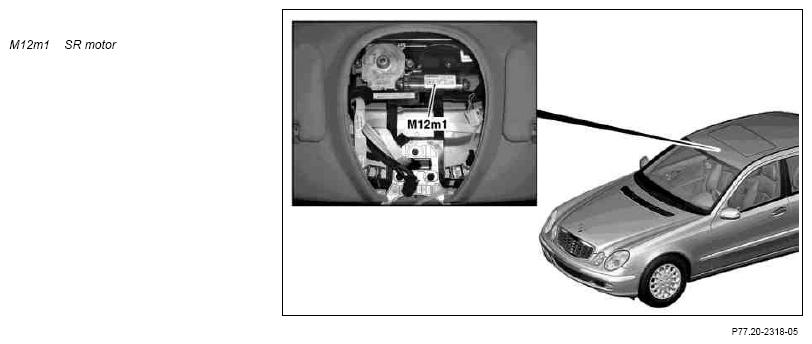

| Sliding/pop-up roof motor, location | The SR motor (M12m1) is located behind the overhead control panel control module below the paneling on the front roof frame in the middle. |
| Sliding/pop-up roof motor, purpose | Opening and closing the combined sliding/pop-up roof. |
| Sliding/pop-roof motor, function | The direction of rotation is determined by the polarity of the actuation voltage from the overhead control panel control module |
