Electric sliding/pop-up roof, location of components - GF77.20-P-0001-01T

Shown on model 211.0

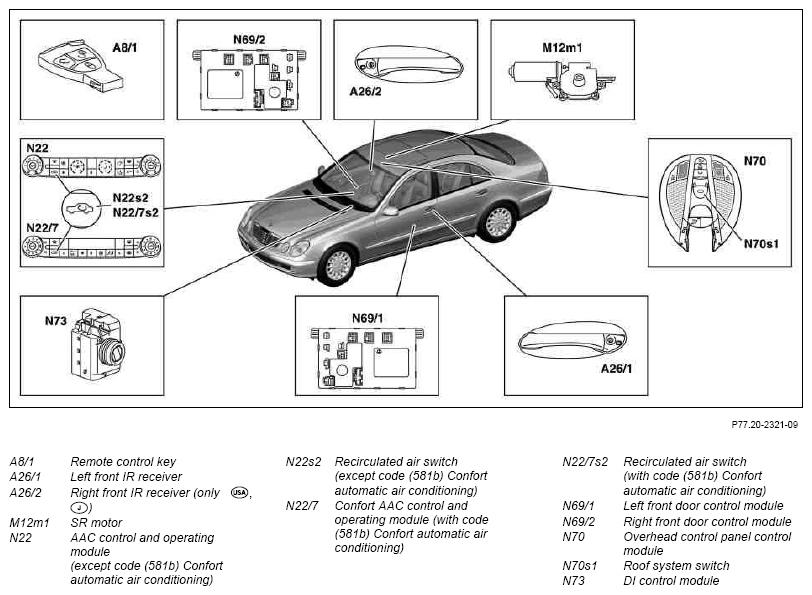

Fig 1: Locating Electric Sliding/Pop-Up Roof Components

G07508702

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
