Remove/install cover for loudspeaker - AR68.10-P-1050T

MODEL 211.0/2/6 up to 31.5.04

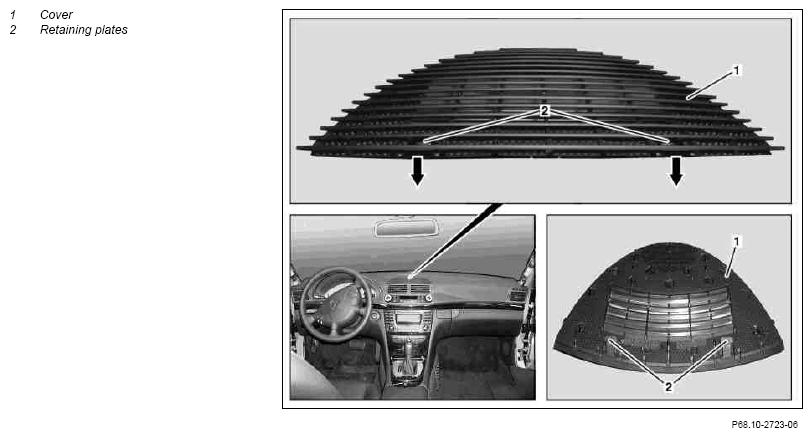

Fig 1: Identifying Cover And Retaining Plates
G07508595Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
1 Release retainer tabs (2) with screwdriver in the direction of the arrow
2 Pull cover (1) toward rear out of instrument panel
3 Install in the reverse order
