Install rear dome lamp wiring harness in headliner - AR68.30-P-4305-04T
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-02A | Adhesive tape roll, gray Tesa tape, 50 meters 0.3X50, 236 mm | A 001 989 17 85 |

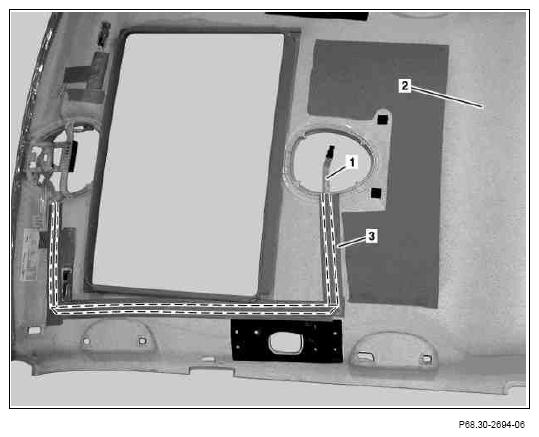

Shown on model 211.2 with code (414a)
Electric glass tilting/sliding roof
- Position dome lamp wiring harness (1) on new headliner (2).
Observe marking "UP" at dome lamp wiring harness (1).
- Route dome lamp wiring harness (1) according to routing of old headliner (2) without kinks and glue to new headliner (2) with adhesive tape (3).
Firmly press on adhesive tape (3), otherwise the adhesive tape (3) can detach itself from the headliner (2).
