Install PTS warning display wiring harness into headliner - AR68.30-P-4305-06T
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-02A | Adhesive tape roll, gray Tesa tape, 50 meters 0.3X50, 236 mm | A 001 989 17 85 |

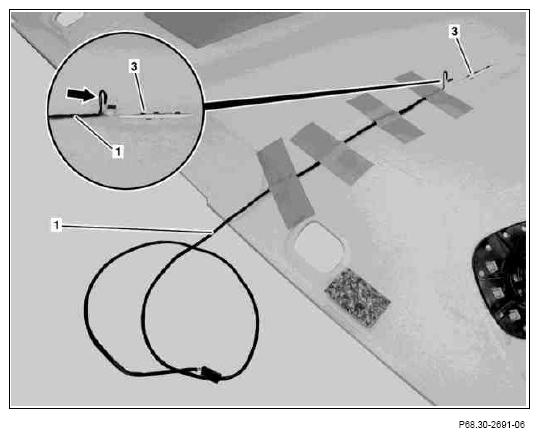

Shown on model 211.2
- Route PTS warning display wiring harness (1) in recess of new headliner as illustrated.
The PTS warning display (1) has a green marking (arrow). This marking (arrow) must be located at the edge of the cutout (3).
- Glue PTS warning display wiring harness (19 to new headliner with an approx. 10 cm long strip of adhesive tape at a distance of approx. 5 cm.
Firmly press on adhesive tape, otherwise PTS warning display wiring harness (1) can detach itself from headliner.
