Remove/install rear bumper - AR88.20-P-2200T
MODEL 211.0
MODIFICATION NOTES
| 23.1.07 | Repair method modified. Left and right side paneling in trunk is only loosened. |
| Remove/install | |||
| 1 | Remove trim from rear end center assembly | AR68.30-P-4785T | |
| 2 | Remove spare tire well paneling | ||
| 3 | Loosen left and right side paneling in trunk | On vehicles without code (287) Through-loading feature, except CODE (924) Bivalent natural gas drive | AR68.30-P-4800T |
| On vehicles with code (287) Through-loading feature. | AR68.30-P-4800TA | ||

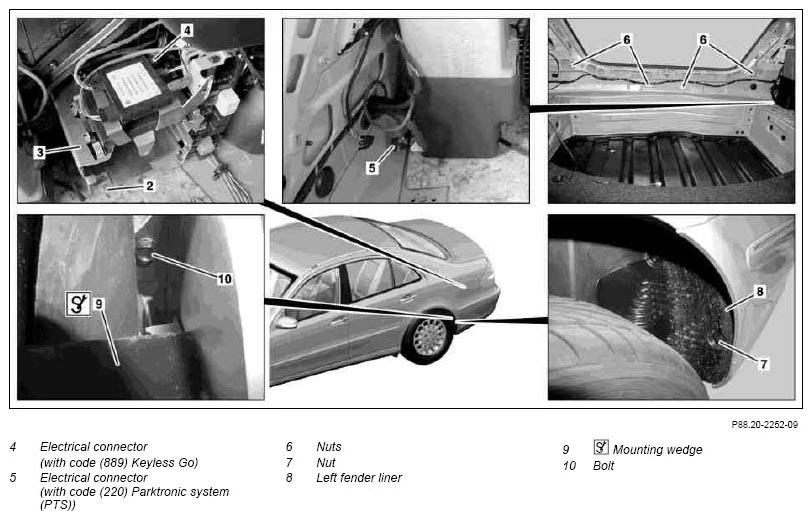

| 4 | Separate electrical connectors (4) | On vehicles with code (889) Keyless Go. | |
| 5 | Disconnect electrical connectors (5) | On vehicles with code (220) Parktronic system (PTS). | |
| 6 | Unscrew nuts (6) | ||
| 7 | Loosen pressure reservoir with lines connected and lay down to side. | On vehicles with code (489) Airmatic (semi-active air suspension). | |

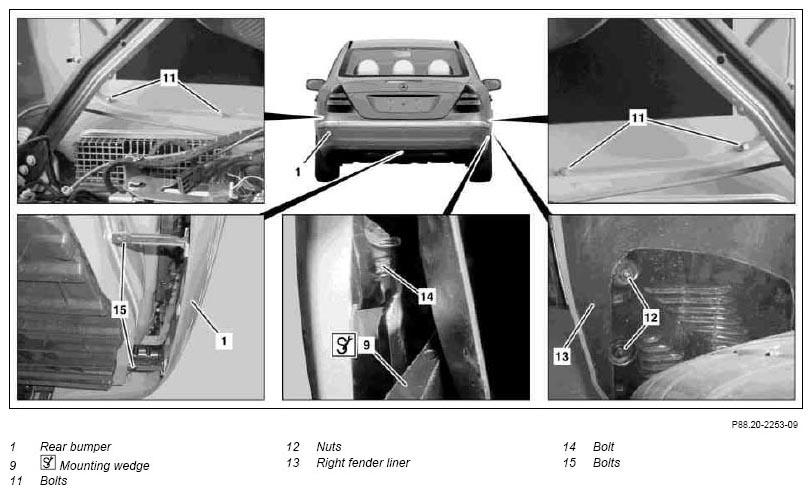

| 8 | Remove bolts (11) | ||
| 9 | Remove nut (7) | ||
| 10 | Loosen left inner fender (8) from fender with assembly wedge (9) | Figure | |
| 11 | Unscrew bolt (10) | ||
| 12 | Unscrew nuts (12) | ||
| 13 | Loosen right inner fender (13) from fender with assembly wedge (9) | Figure | |
| 14 | Unscrew bolt (14) | ||
| 15 | Remove bolts (15) | ||
| 16 | Remove rear bumper (1) | ||
| 17 | Install in the reverse order |
