Remove/install electronic ignition switch control unit - AR80.57-P-1000T
MODEL 211.0/2/6
Modification notes
| 29.1.04 | Repair method completely modified | Step 1 to step 8 |
| Remove/Install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Transfer basic data from EIS control module (N73) to STAR DIAGNOSIS | Only when replacing EIS control module (N73) On vehicles with electric glass tilting/sliding roof, code 414a always perform learn-in procedure for pinch protection of sliding roof. |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||
| 2 | Disconnect ground cable from battery | Model 211.0/6 | AR54.10-P-0003T |
| Model 211.2 | AR54.10-P-0003TA | ||

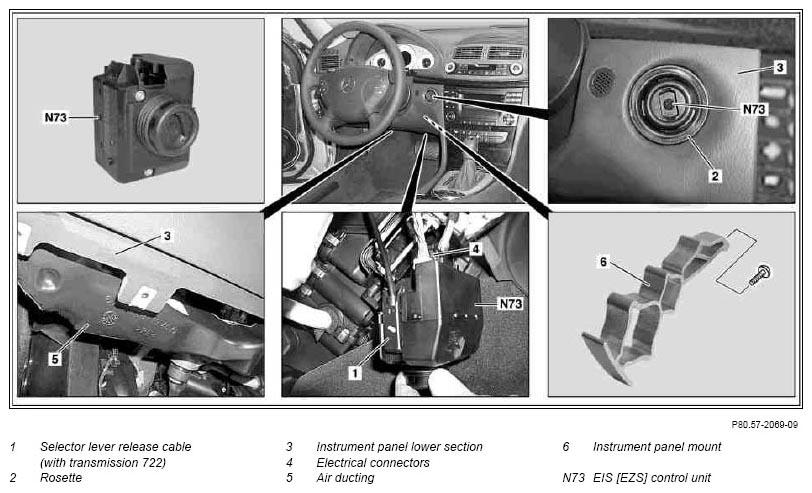

| 3 | Unscrew rosette (2) using claw-type wrench | Fig 2 | |
| 4 | Remove cover below left of instrument panel | AR68.10-P-1500T | |
| 5.1 | Remove air ducting (5) | Vehicles with comfort automatic air conditioning, code 481 | |
| 6.1 | Remove instrument cluster | Vehicles with USA version, code 494 |
AR54.30-P-6015T |
| 7.1 | Remove instrument panel bracket (6) | Vehicles with USA version, code 494 | |
| Information on machining/treating magnesium components | AH60.00-P-0023-01R | ||
| 8 | Remove EIS control module (N73) from instrument panel bottom section (3) downward until electrical connectors (4) are accessible | ||
| 9.1 | Unclip selector lever release cable (1) toward front of vehicle and remove from EIS control module (N73). | Vehicles with transmission 722 | |
| 10 | Unplug electrical connectors (4) and remove electronic ignition switch control unit (N73) | ||
| 11 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
