Remove/install sealing rail on outside - AR72.10-P-1700T

MODEL 211.0/2/6

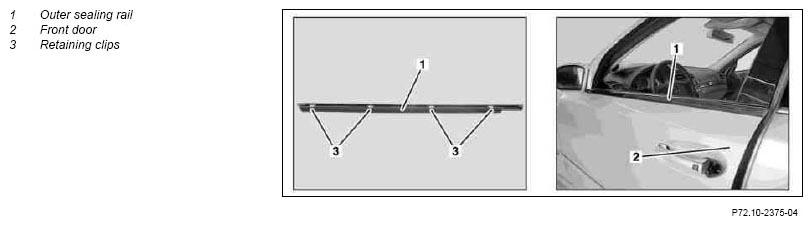

Fig 1: Identifying Outer Sealing Rail, Front Door And Retaining Clips

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Completely open window in front door (2)
2	Unclip outer sealing rail (1) on front door (1) from front toward rear with mounting wedge	Carefully unclip outer sealing rail (1) to prevent damaging paint Pull up outer sealing rail (1) while unclipping. Installation:  Replace damaged retaining clips (3)	Figure
3	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
