Remove/install inside door opener on rear door - AR72.12-P-2310T

MODEL 211.0/2

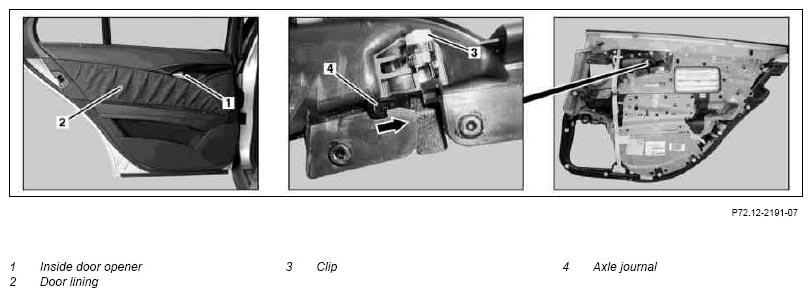

Fig 1: Identifying Rear Inside Door Opener Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0

	Remove/Install
1	Remove door lining (2) at rear door	On vehicles without code (Z04) Light armoring	AR72.12-P-1010T
		On model 211.065/070 with code (Z04) Light armoring	AR72.12-P-1010TG
2	Unclip clip (3)
3	Unlock axle journal (4) in direction of arrow and pull out
4	Remove inside door opener (1)
5	Install in the reverse order
