Remove/install inner paneling at window frame of rear door - AR72.12-P-1012T

MODEL 211.0/2

Shown on model 211.0

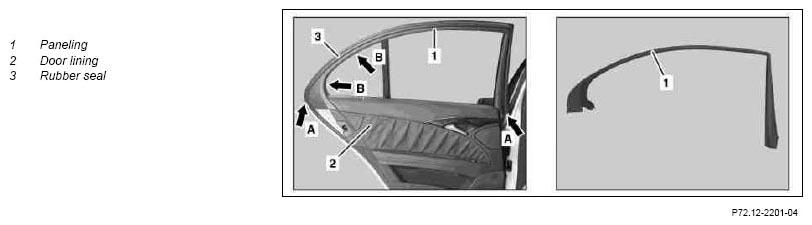

Fig 1: Identifying Rear Door Window Frame Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door lining (2) at rear door		AR72.12-P-1010T
2	Loosen rubber seal (3) on rear door in front and rear area (arrow A) of paneling (1).
3	Unclip paneling (1) from rear door with mounting wedge	Installation:  Paneling (1) should arrest audibly Ensure that corner window seal (1) is seated correctly on paneling (1) (arrows B).	Figure
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
