Remove/install inner paneling at window frame of front door - AR72.10-P-6580T

MODEL 211.0/2/6

Shown on left front door

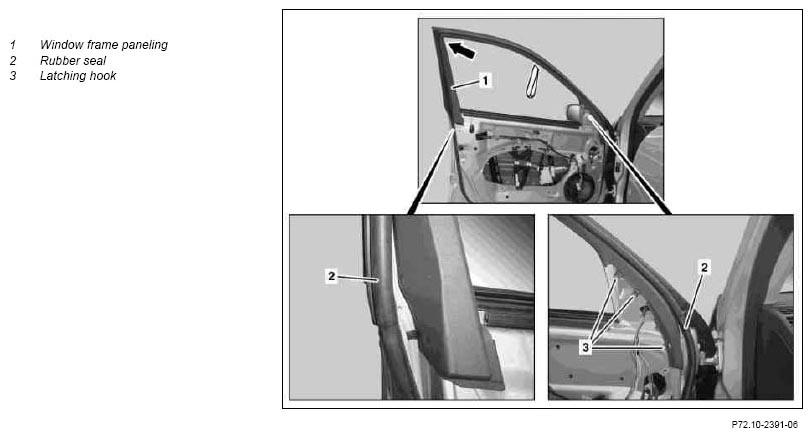

Fig 1: Identifying Window Frame Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door lining on front door		AR72.10-P-1000T
2	Detach rubber seal (2) in front and rear area	Installation:  Ensure that the rubber seal (2) is seated correctly.
3	Unclip latching hook (3)
4	Unclip window frame paneling (1) using mounting wedge at window frame and remove	Installation:  Start the installation at the upper corner (arrow). The window frame paneling (1) should arrest audibly.	Figure
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
