Remove/install front door control unit - AR72.29-P-1000T

MODEL 211.0/2/6

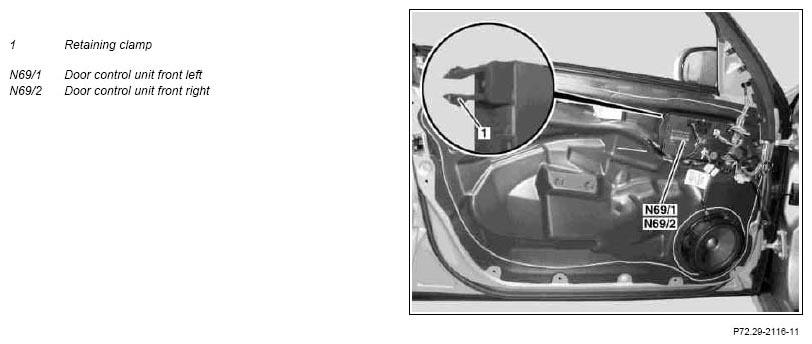

Shown on left front door

Fig 1: Identifying Front Door Control Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

6.6.06

"Disconnect/connect battery ground line" removed

	Remove/install
1	Remove door lining	On vehicles without code (Z04) Light armoring	AR72.10-P-1000T
		On model 211.065/070 with code (Z04) Light armoring	AR72.10-P-1000TG
2	Disconnect electrical connectors from left front door control unit N69/1) and right front door control unit (N69/2)	Installation:  Ensure that electrical lines are routed properly.
3	Press left and right retaining clips (1) on left front door control unit N69/1) and right front door control unit (N69/2) together and remove left front door control unit N69/1) and right front door control unit (N69/2)	Do not damage door foil
4	Install in the reverse order
