Rear power window motor, location/function - GF72.29-P-4109T

MODEL 211.0/2/6

Illustrated on left rear door

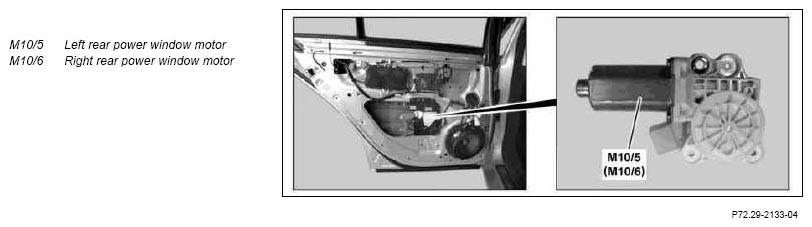

Fig 1: Locating Rear Power Window Motors
G07505127Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

IMPORTANT On model 211.6, the number of the power window motors and door control modules in the rear can vary depending on the equipment and special body

Rear power window motor, location The left rear power window motor (m10/5) and right rear power window motor (m10/6) are located in the corresponding door
Rear power window motor, function   GF72.29-P-4109-02T
