Power windows comfort closing, function - GF72.29-P-3005T

MODEL 211.0/2/6

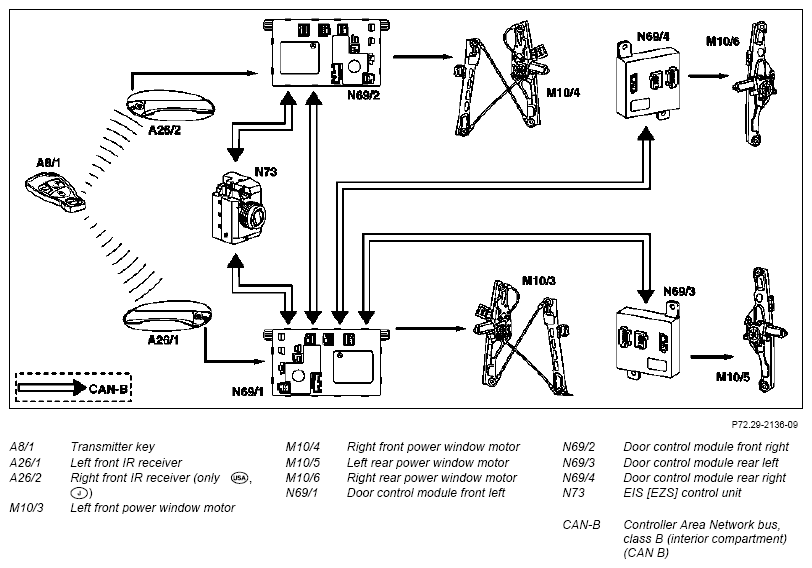

Fig 1: Power Windows Comfort Closing Communication Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements

Circuit 15C, circuit 15R and circuit 15 OFF
No overvoltage or undervoltage
All doors closed (status: locked)
No other control unit sending central closing messages
"Lock" button on transmitter key (A8/1) pressed and held down for longer than 1 s.

Function (described on ECE variant)

By actuating the lock button on the transmitter key (A8/1) the actuation request is received by the left front IR receiver (A26/1) and is transmitted to the left front door control unit (N69/1). It then actuates the left front power window motor (M10/3) in the "closing" direction and simultaneously relays the closing request to the right front door control unit (N69/2), left rear door control unit (N69/3) and right rear door control unit (N69/4).

The corresponding door control units then actuate the

Right front power window motor (M10/4)
Left rear power window motor (M10/5)
Right rear power window motor (M10/6)

in the "closing" direction. The convenience closing feature for the power windows is also performed when the windows are not synchronized The power windows are actuated as they are during manual raising. The obstruction protection is active only in the case of normalized windows.

The convenience closing function is aborted if

lockup is detected.
the request is no longer received via interior CAN.
the function requirements listed above are no longer satisfied.

On model 211.6 the number of power window motors and door control units in the rear can vary depending on the equipment and special body.
