Convenience closing of power windows via air recirculation mode button, function - GF72.29-P-3011T

MODEL 211.0/2/6 up to model year 08/modification year 07

MODEL 211.0/2/6

as of model year 09/YoM 08

except CODE (494) USA version

except CODE (460) Canada version

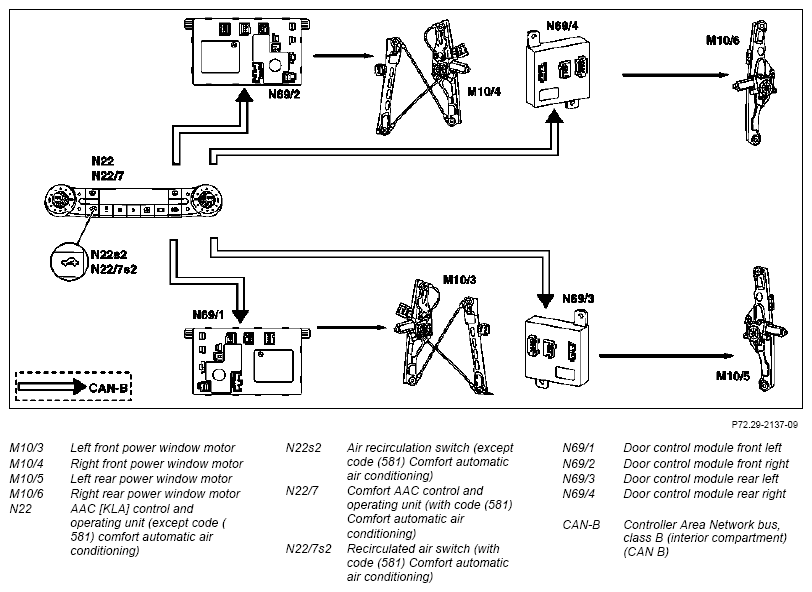

Fig 1: Convenience Closing Of Power Windows Via Air Recirculation Mode Communication Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements

Circuit 15R ON
General system function requirements.

Function

The comfort function can be activated via the AAC [KLA] control and operating unit (N22) (except code (581) Comfort automatic air conditioning) or the comfort AAC control and operating unit (N22/7) (with code (581) Comfort automatic air conditioning) by actuating the air recirculation switch.

The positions of all opened windows are stored and the windows are closed.

On model 211.6 the number of power window motors and door control units in the rear can vary depending on the equipment and special body.

Aborting the function

Missing function requirements.
The power window operating switch is activated in either direction
Lock-up recognition
Zero point tolerance exceeded
Cancellation of actuation request
Failure of CAN message (CAN = Controller Area Network).

The windows are locked via the recirculated air button without excess force limitation. When closing the windows with the recirculated air button the tilting/sliding roof is also closed.

Power windows comfort opening, function	GF72.29-P-3004T
Power windows comfort closing, function	GF72.29-P-3005T
Power windows convenience opening via air recirculation mode button, function	GF72.29-P-3010T
Power window obstruction sensor, function	GF72.29-P-4004T
Synchronization of power windows, function	GF72.29-P-4003T
Power window position recognition, function	GF72.29-P-4000T
