Wiper system (WSA) block diagram - GF82.30-P-0003-04T

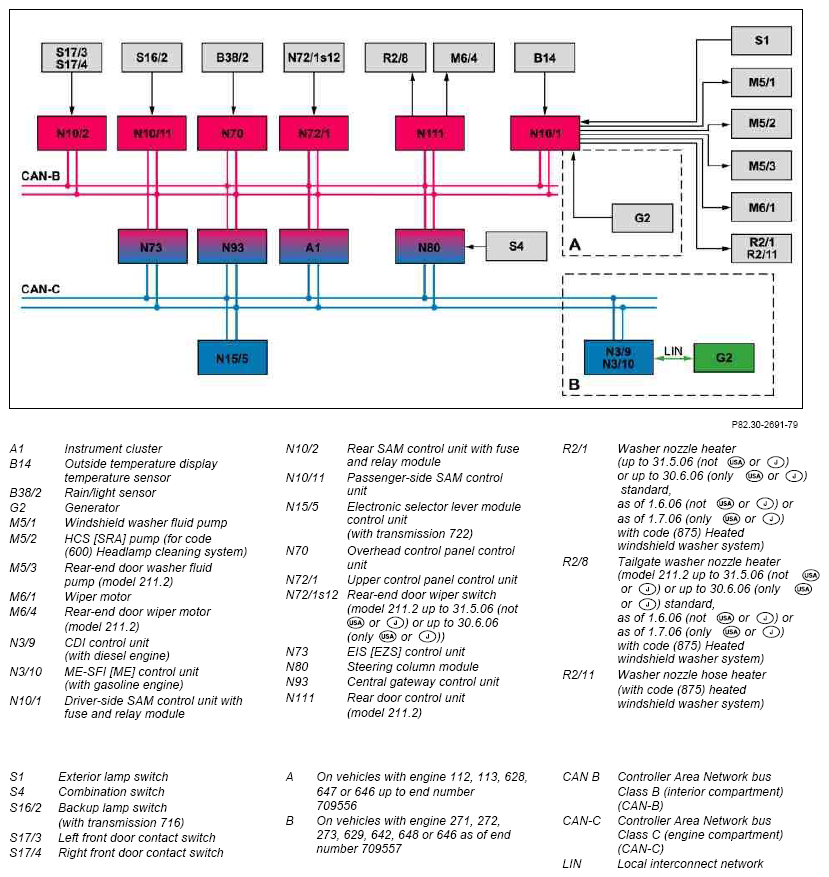

Fig 1: Wiper System Block Diagram

G07504561

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
