Special taxi system, component locations - GF82.25-P-0010-01T

15.03.07

The document has been updated to this date and will no longer be subject to revision.

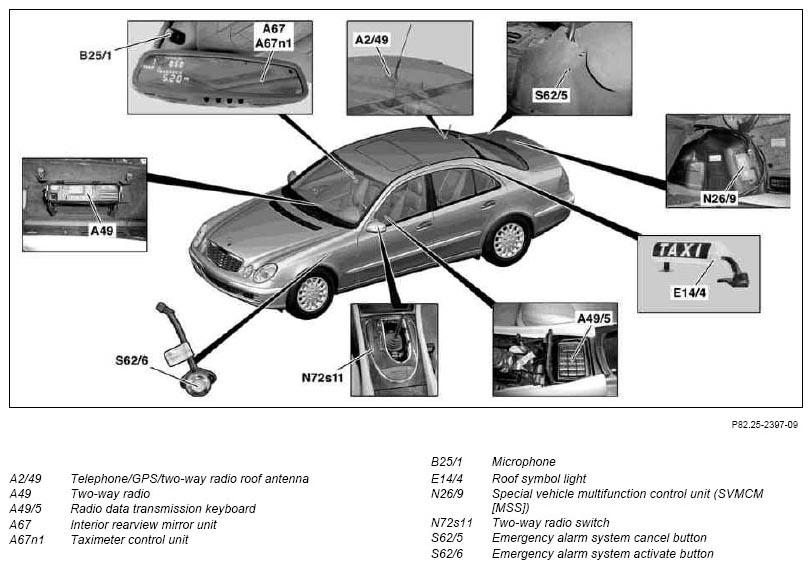

Fig 1: Locating Special Taxi System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.0
