Special signal system, government/emergency vehicles, location of components - GF82.25-P-0001-01T

15.03.07

The document has been updated to this date and will no longer be subject to revision.

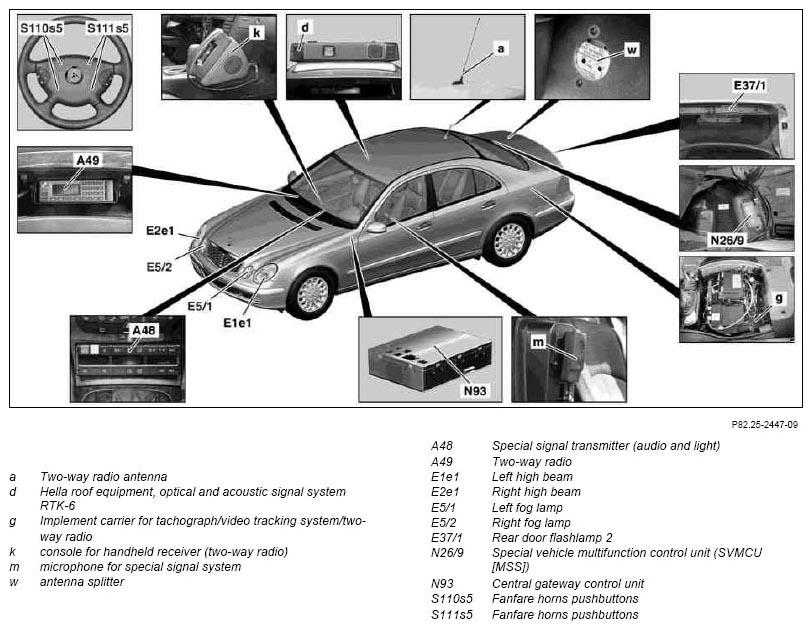

Fig 1: Locating Special Signal System, Government/Emergency Vehicles Components - Open Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

shown on model 211.0, open version

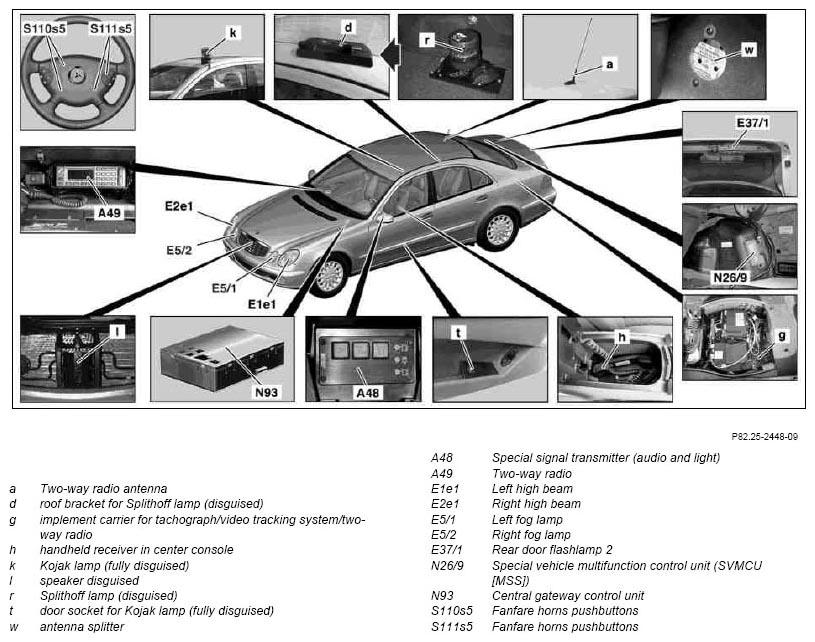

Fig 2: Locating Special Signal System, Government/Emergency Vehicles Components - Disguised Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

shown on model 211.0, disguised version
