Exterior lights, location of components - GF82.10-P-0003-02T

Location of components, shown on model 211.0

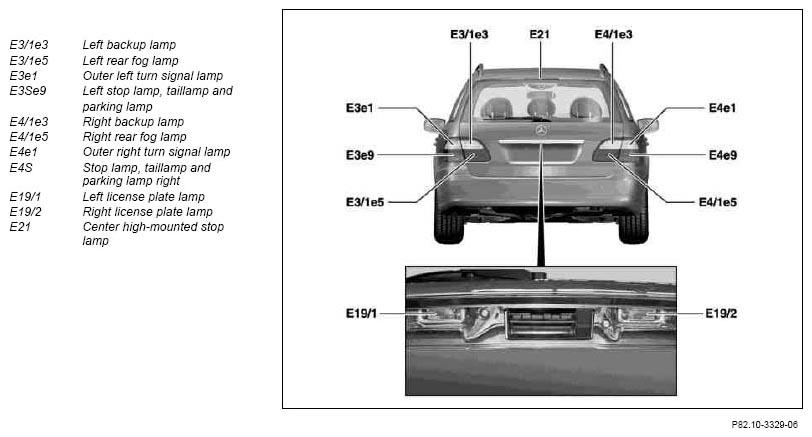

Fig 1: Locating Exterior Light Components - Model 211.0 (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location of components on model 211.0

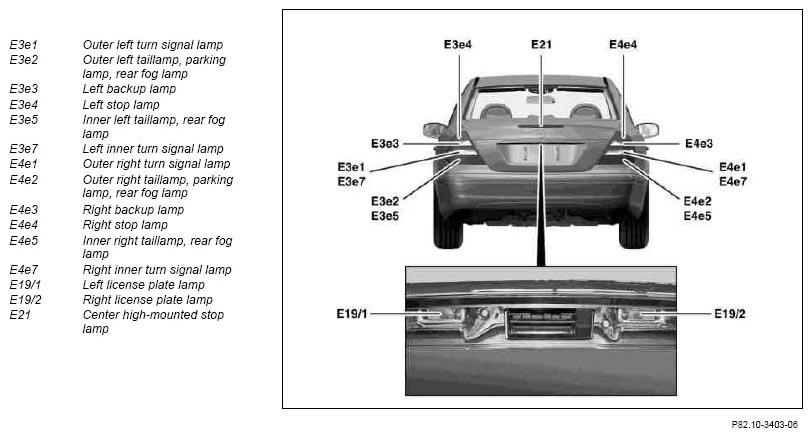

Fig 2: Locating Exterior Light Components - Model 211.0 (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location of components on model 211.2

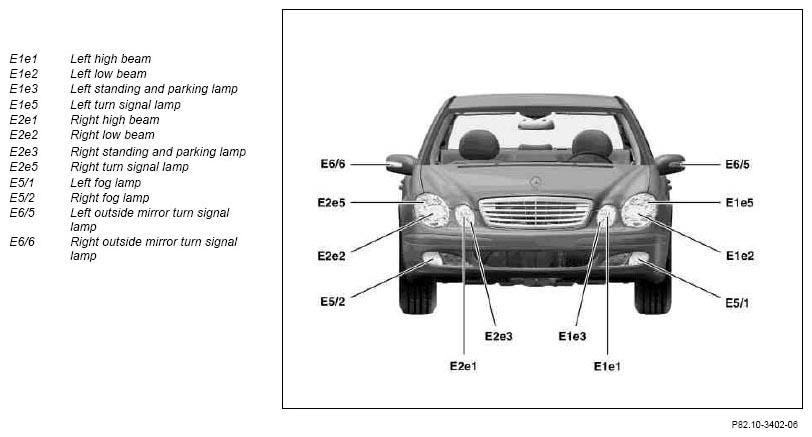

Fig 3: Locating Exterior Light Components - Model 211.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
