Adjust or check front fog lights - AP82.10-P-8260-04A

1. The light-dark boundary must be as horizontal as possible at the height of the appropriate dividing line (4), correct if necessary.
2. For model 140 sedan as of approx. 03.94, 168 and 202: Check seat of bulb.
   Fig 1: Identifying Dividing Line

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 163.113 /154 as of VIN A289565,

163.113 as of VIN X754620,

163.128 /154 /157 /175 except code U49 Styling package

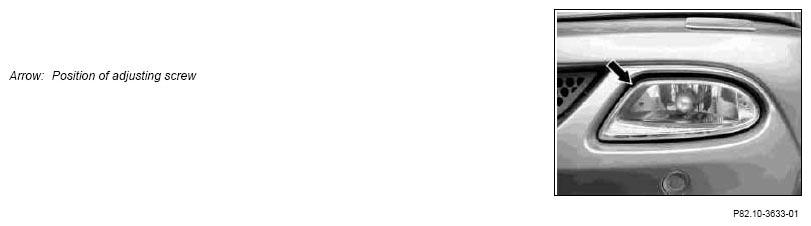

Fig 2: Identifying Position Of Adjusting Screw

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
