Remove/install stowage compartment in rear - AR68.20-P-2500T

MODEL 211.0/2

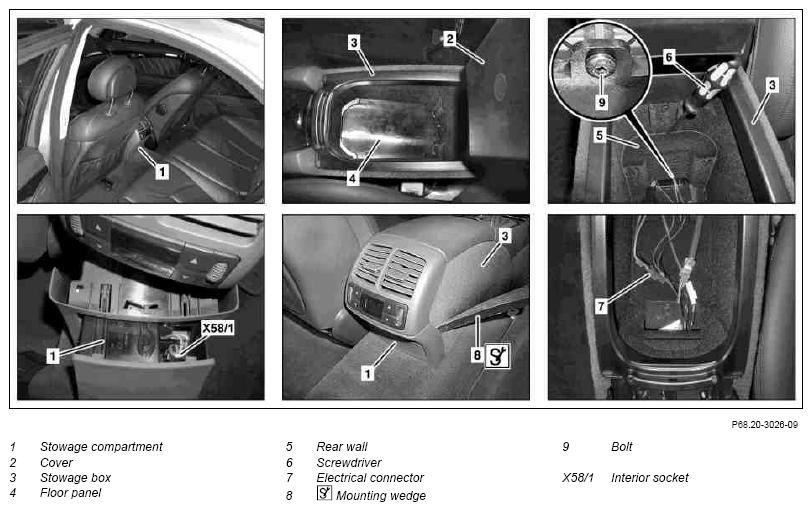

Fig 1: Identifying Rear Stowage Compartment Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

8.1.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Move passenger seat completely toward front	See Operating Instructions
2	Open cover (2) of stowage box (3)	Actuate left release.
3	Remove inner lip from stowage box (3)
4	Pull out baseplate (4) using pulling hook	Installation:  Floor panel (4) should catch audibly.
			Figure
5	Unclip rear wall (5) from stowage box (3) with screwdriver (6) and lay down to side in stowage box (3).
6	Unscrew bolt (9)
7	Disconnect electrical connector (7) from interior socket (X58/1)
8	Unclip stowage compartment (1) from stowage box (3) with mounting wedge (8) and remove	Thereby pull electrical lines of interior socket (X58/1) out of stowage box (3).
			Figure
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
