Remove/install stowage box cover - AR68.20-P-5701TA

MODEL 211.0/2/6

with CODE (380) Preinstallation for MB phone "CTEL", complete

with CODE (381a) CP Light telephone system

with CODE (382a) MB telephone "CTEL" in armrest

with CODE (383b) CP High telephone system

Shown with removed stowage box

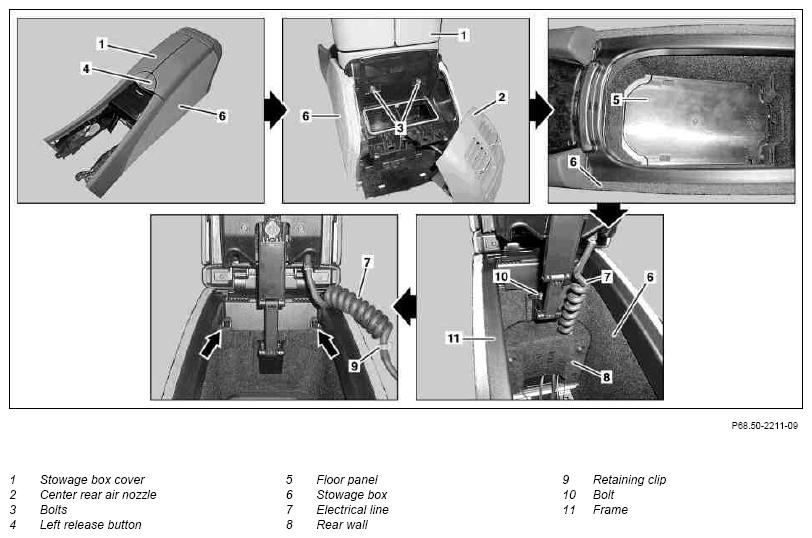

Fig 1: Identifying Stowage Box Cover Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal/installation
1	Remove center rear air nozzle (2) until bolts (3) are accessible	See: ↓
		Remove/install rear air nozzle	AR83.10-P-4800T
2	Remove bolts (3)
3	Open stowage box cover (1)	Actuate left unlock button (4)
4	Remove inner lip from stowage box (6)
5	Pull floor panel (5) out of stowage box (6) with pulling hook		Figure
		Installation:  Floor panel (5) should arrest audibly
6	Disconnect electrical connectors of electrical line (7)	Two electrical connectors.
7	Unclip rear wall (8) and lay down to side
8	Unclip retaining clip (9) fro stowage box (6) and remove electrical line (7) from stowage box (6)
9	Unscrew bolt (10)
10	Unclip frame (11) from rear area of stowage box (6).		Figure
11	Unlock latching hooks (arrows) with screwdriver and pull stowage box cover (1) out of stowage box (6) and remove	Installation:  Latching hooks (arrows) should catch audibly.
12	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
