Remove/install stowage box cover - AR68.20-P-5701T

MODEL 211.0/2/6

except CODE (380) Preinstallation for MB phone "CTEL", complete

except CODE (381a) CP Light telephone system

except CODE (382a) MB telephone "CTEL" in armrest

except CODE (383b) CP High telephone system

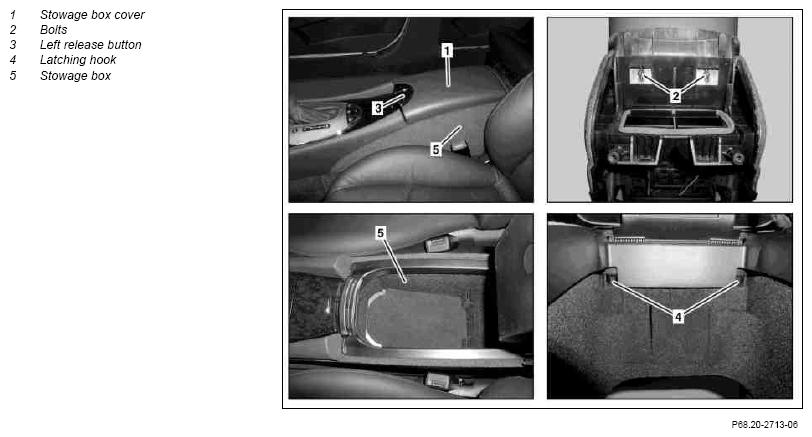

Fig 1: Identifying Stowage Box Cover Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

22.3.02

Repair method has been revised

Document completely revised

	Remove/Install
1	Remove center rear air nozzle in rear	Remove only until bolts (2) are accessible. Do not disconnect electrical connectors.	AR83.10-P-4800T
2	Unscrew bolts (2)
3	Open stowage box cover (1)	Press left release button (3).
4	Release latching hooks (4) using screwdriver and remove stowage box cover (1) upward from the stowage box (5)	Carefully unlock latching hooks (4), otherwise latching hooks (4) can break off.
5	Install in the reverse order
