Remove/install rear loudspeaker cover - AR68.30-P-3445T

MODEL 211.0

Illustrated on removed rear shelf

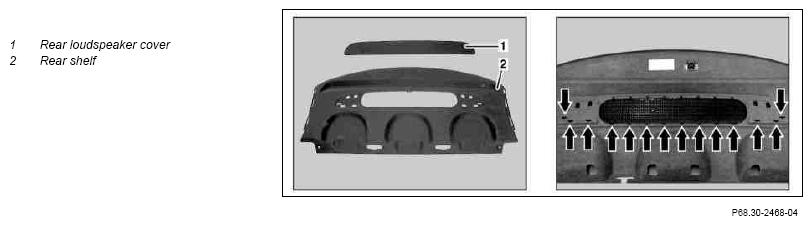

Fig 1: Identifying Rear Loudspeaker Cover & Rear Shelf

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Unclip rear loudspeaker cover (1) with assembly wedge from catch hooks (arrows) on rear shelf (2) and remove toward front		Figure
2	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
