Remove/install center air nozzle - AR68.10-P-1150T
MODEL 211.0/2/6
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| 1 | Remove speaker in instrument panel | AR82.62-P-7833T | |
| 2 | Remove right trim strip on instrument panel | AR68.10-P-1180T | |
| 3 | Remove bolts (2) | ||

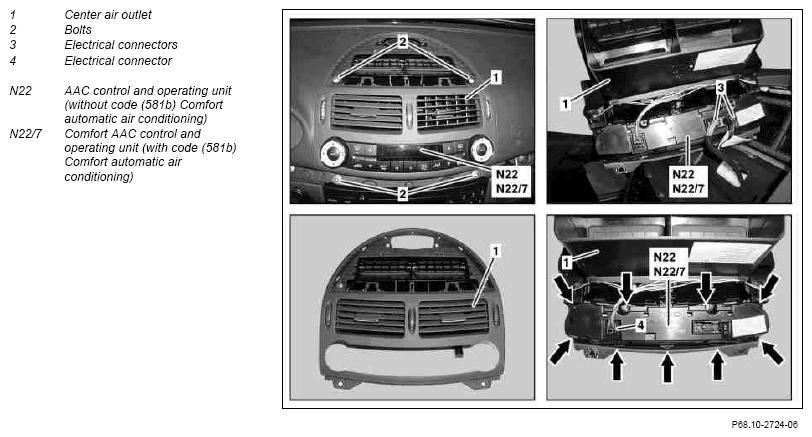

| 4.1 | Remove AAC control and operating unit (N22) together with center air outlet (1) from instrument panel until electrical connectors (3, 4) are accessible. | On vehicles without code (581b) Comfort automatic air conditioning | |
| 4.2 | Remove comfort AAC control and operating unit (N22/7) together with center air outlet (1) from instrument panel until electrical connectors (3, 4) are accessible. | On vehicles with code (581b) convenience automatic air conditioning | |
| 5 | Disconnect electrical connectors (3, 4) | ||
| 6 | Unscrew bolts (arrows). | ||
| 7.1 | Remove AAC control and operating unit (N22) from center air nozzle (1) | On vehicles without code (581b) Comfort automatic air conditioning | |
| 7.2 | Remove comfort AAC control and operating unit (N22/7) from center nozzle (1) | On vehicles with code (581b) convenience automatic air conditioning | |
| 8 | Install in the reverse order |
