Remove/install and disassemble parcel shelf - AR68.30-P-4580T

MODEL 211.0

except CODE (287) Through-loading feature

except CODE (540) Electric roller blind for rear window

Shown with code (810) Sound system

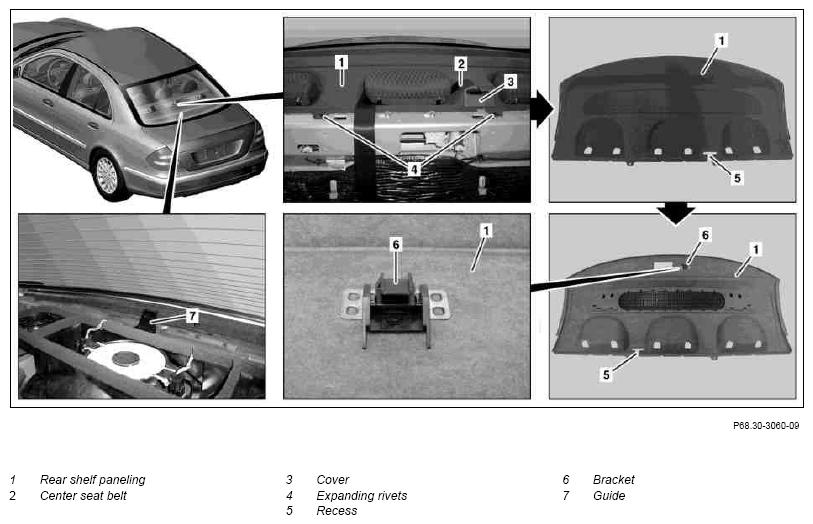

Fig 1: Identifying Parcel Shelf Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove rear seat backrest		AR91.12-P-1620T
2	Remove rear head restraints		AR91.16-P-1770T
3	Remove paneling from left and right C-pillars	Do not remove belt end fitting	AR68.30-P-4490T
4	Remove expanding rivets (4)
5	Unclip cover (3) on center seat belt (2) from rear shelf paneling (1)
6	Guide center seat belt (2) through recess (5) in rear shelf paneling (1)
7	Remove rear shelf paneling (1)	Lift rear shelf paneling (1) at front and pull out of guide (7) toward front with bracket (6).
8	Install in the reverse order
