Inside rearview mirror, location/task/design/function - GF68.49-P-2100T

MODEL 211.0/2/6 with CODE (249b) Automatic dimming interior rearview mirror and outside mirror (driver)

Shown on model 211.0

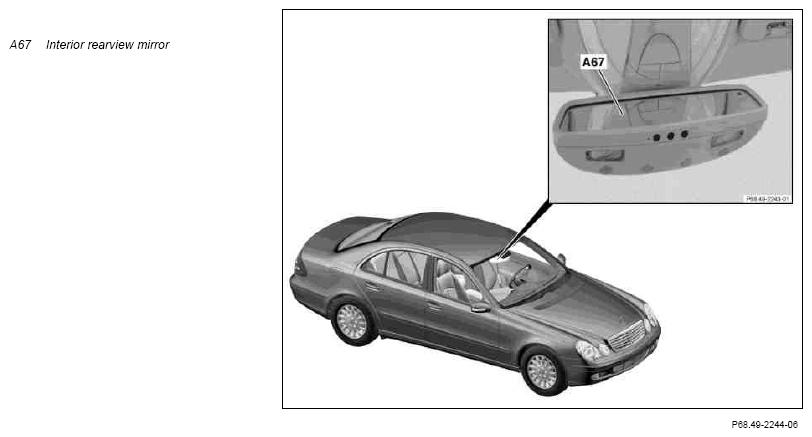

Fig 1: Locating Inside Rearview Mirror
G07508591Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Interior rearview mirror, location The interior rearview mirror (A67) is positioned in the middle of the overhead control panel, at the front of the dome.
Interior rearview mirror, task Ensuring observation of the traffic behind, for different drivers.
Interior rearview mirror, design   GF68.49-P-2100-02T
Interior rearview mirror, function   GF68.49-P-2100-03T
