Retrofit sound system - AZ82.62-P-0002T

MODEL 211.0 with CODE (810) Sound system AMG high-end sound system

Picture 1, shown on model 219

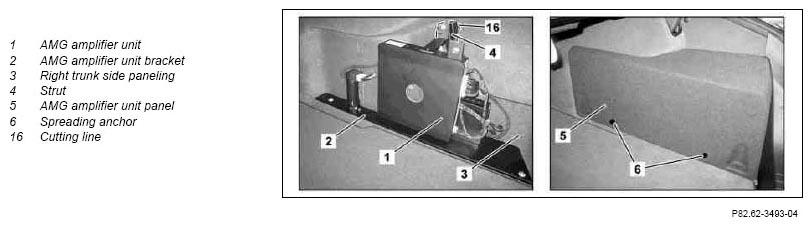

Fig 1: Identifying AMG High-End Sound System Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Picture 2, shown on model 219

Fig 2: Identifying AMG High-End Sound System Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Picture 3, shown on model 219

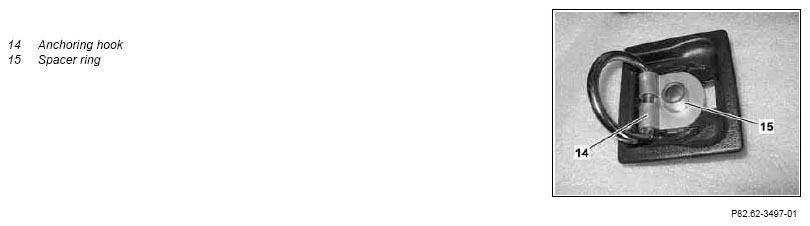

Fig 3: Identifying Anchoring Hook And Spacer Ring

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
	Notes on avoiding damage to fiber optic cables during repair work	Model 219.3 with Media Oriented System Transport (MOST).	AH82.60-P-0001-05TX
		Leave speaker in original packaging as long as possible. Do not push in or damage speaker membranes. Pushed in or torn speakers are audible in the test.
		Remove series logo (Harman or Becker) from speaker grilles.
		If possible, use protective foils against soiling. Perform installation and removal in area of rear shelf and C-pillars with gloves.
1	Connect Star Diagnosis and read out fault memory, save if necessary
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Disconnect ground cable from battery
		Model 211.0	AR54.10-P-0003T
3	Remove loudspeaker in dashboard
		Model 211.0	AR82.62-P-7833T
4	Remove front door speakers	Only reinstall door trim for model 211.0 following operation step 5. For these models, mirror triangles must be exchanged beforehand.
		Model 211.0	AR82.62-P-7845T
5	Remove mirror triangles
6	Remove speakers in rear doors
		Model 211.0	AR82.62-P-7874T
7	Remove speaker in rear shelf
		Model 211.0 except code (540a) Electric roller blind for rear window.	AR82.62-P-7836T
		Model 211.0 with code (540a) Electric roller blind for rear window.	AR82.62-P-7836TA
8	Remove trim from rear end center assembly
		Model 211.0	AR68.30-P-4785T
9	Remove side paneling in trunk
		Model 211.0 with code (287) Through-loading feature.	AR68.30-P-4800TA
10	Remove audio component center	Only vehicles up to code (808) Model year 2008.
		Model 211.0 up to 1.6.08 except code (809) Model year 2009	AR82.60-P-7605T
	Install
11	Install AMG speaker in instrument panel
		Model 211.0	AR82.62-P-7833T

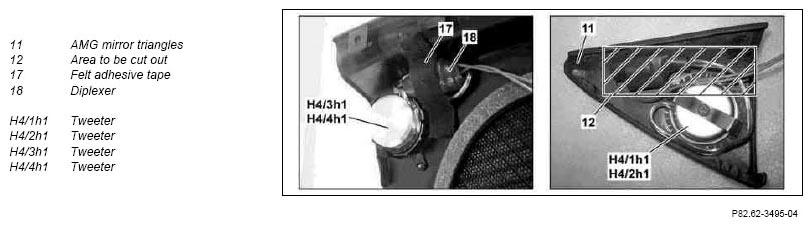

12	Install AMG mirror triangles	To ensure that original foam material can be used in AMG mirror triangles (11), it must be cut out in area of connector (see picture 1, striped area). To do so, place connector on foam material and mark area to be cut out (12).
13	Install AMG speakers in front doors
		Model 211.0	AR82.62-P-7845T
14	Install AMG speakers in rear doors	Insert diplexers (18), tweeter H4/3h1 and H4/4h1, as shown in picture 1, into door trim and fix in place with felt adhesive tape (17).
		Model 211.0	AR82.62-P-7874T
15	Install AMG speaker in rear shelf	Only reinstall rear shelf following system check at end of conversion work.
		Model 211.0 except code (540a) Electric roller blind for rear window.	AR82.62-P-7836T
		Model 211.0 with code (540a) Electric roller blind for rear window.	AR82.62-P-7836TA
16	Install strut (4) to the right in trunk	Only model 211.0 without  code (489) Airmatic (semi-active air suspension).
17	Install AMG amplifier unit (1)	Model 211.0	AZ82.62-P-0002-01T
18	Perform system test	To do so, reconnect battery. All newly installed speakers must undergo a function or audio test before remaining parts are installed.
19	Install in the reverse sequence	Operation step 10, 9, 8, 7
20	Install AMG amplifier unit panel (5)	Engage AMG amplifier unit panel (5) in upper area and fasten at bottom with two expansion anchors (6) (see picture 2). When installing anchoring hooks (14), ensure that spacer rings (15) are seated correctly below anchoring hooks (14) (see picture 3).
