Retrofit rear entertainment screen - AZ82.60-P-0015-03T

The following work procedure is shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

1. Slide screen (3) onto bracket.
2. Create electrical connection between screen (3) and wiring harness (6).
3. Route electrical connector in opening of backrest.
4. Slide screen (3) onto bracket until lower edge of screen (3) makes contact with backrest.
5. Tighten screen (3) at bracket from front using screws/bolts (19) contained in installation kit.

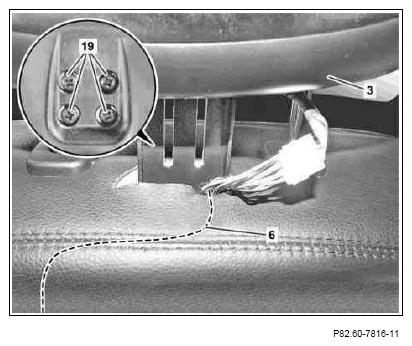

   Fig 1: Identifying Rear Entertainment Screen, Wiring Harness & Screws/Bolts

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
