Retrofit rear entertainment control unit - AZ82.60-P-0015-01TA

Bond felt tape onto video control unit (1).
The side of the video control unit (1) with the mounting brackets is not bonded.

Fig 1: Identifying Video Control Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Glue down video control unit (1) at cross strut (22) of seat frame with Velcro strip (21).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

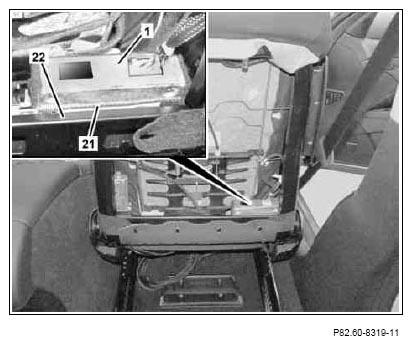

Fig 2: Identifying Video Control Unit, Cross Strut Of Seat Frame & Velcro Strip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Only perform the following operation steps on vehicles with code (275) Memory package (driver seat, steering column, mirrors) or with code (242) Electrically adjustable front passenger seat with memory.
Bond felt tape onto rear entertainment control unit (2).
Do not bond the bottom of the rear entertainment control unit (2).

Fig 3: View Of Felt Tape On Control Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Glue down rear entertainment control unit (2) at cross strut (22) with Velcro strip (21).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

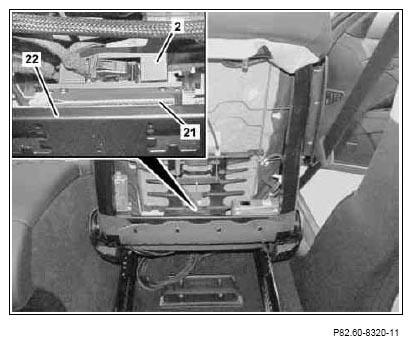

Fig 4: Identifying Rear Entertainment Control Unit, Cross Strut & Velcro Strip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
