Retrofit rear entertainment control unit - AZ82.60-P-0015-01T

Bond felt tape onto video control unit (1).
The side of the video control unit (1) with the mounting brackets is not bonded.

Fig 1: Identifying Video Control Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Glue down video control unit (1) at cross strut (22) of seat frame with velcro strip (21).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

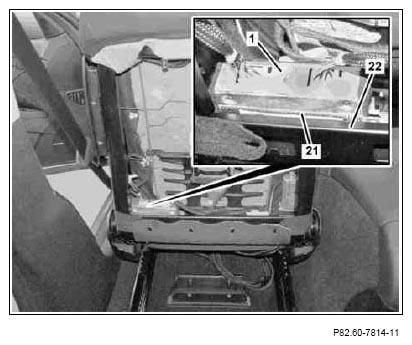

Fig 2: Identifying Video Control Unit, Cross Strut And Velcro Strip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Only perform the following operation steps on vehicles with code (275) Memory package (driver seat, steering column, mirrors).
Bond felt tape onto control unit (2).
Do not bond the bottom of the control unit (2).

Fig 3: View Of Felt Tape On Control Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Glue down control unit (2) at cross strut (22) with velcro strip (21).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

Fig 4: Identifying Control Unit, Cross Strut & Velcro Strip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
