Retrofit FSE 12 hands-free system - AZ82.70-P-0011TA
MODEL 211.0## 1# with CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS (with navigation) except CODE (494) USA version except CODE (498) Japan version except CODE (924) Bivalent natural gas drive except retrofitted iPod kit

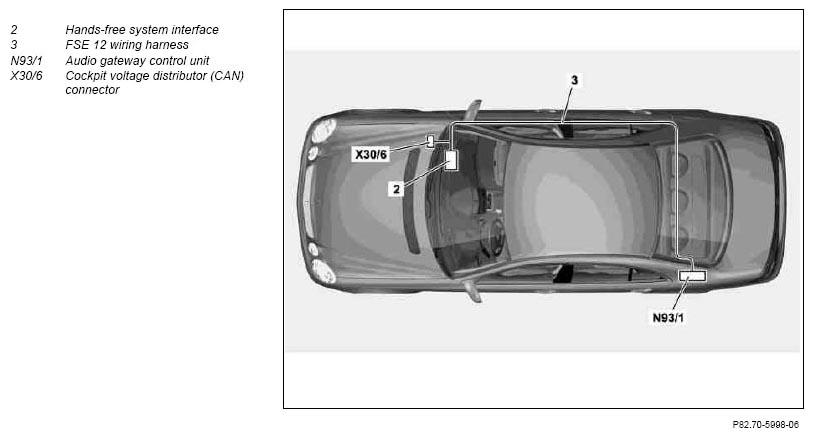

FSE 12 wiring harness routing diagram
| Removing | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003T | |||
| 2 | Remove cover on center console | ||
| AR68.20-P-2350T | |||
| 3 | Remove ashtray from center console | ||
| AR68.20-P-2400T | |||
| 4 | Remove overhead control panel control unit | ||
| AR82.20-P-1000T | |||
| 5 | Remove cover below instrument panel (right) | ||
| AR68.10-P-1520T | |||
| 6 | Remove paneling on right A-pillar | ||
| Footwell trim. | AR68.30-P-4050TA | ||
| 7 | Remove door sill molding at right front and right rear | ||
| 8 | Remove front floor covering (right) | ||
| AR68.20-P-2070T | |||
| 9 | Remove paneling from right B-pillar | ||
| AR68.30-P-4700T | |||
| 10 | Remove trim at side next to the right rear seat backrest | ||
| 11 | Remove covering over control unit plate in luggage compartment | ||
| 12 | Remove SAM control unit with fuse and relay box in luggage compartment | ||
| AR54.21-P-1258T | |||
| 13.1 | Remove paneling in center of luggage compartment | ||
| Except CODE (287) Through-loading feature. | AR68.30-P-4810T | ||
| 14 | Remove side trim in left and right sides of trunk | ||
| Except CODE (287) Through-loading feature. | AR68.30-P-4800T | ||
| With CODE (287) Through-loading feature. | AR68.30-P-4800TA | ||
| Install | |||
| 15 | Retrofit the CTEL mounting bracket with PSC adapter plug | ||
| 16 | Retrofit hands-free system wiring harness | AZ82.70-P-0005-02TY | |
| 17 | Retrofit control unit interface | AZ82.70-P-0001-07T | |
| 18 | Retrofit microphone for hands-free system | AZ82.70-P-0005-08TB | |
| 19 | Perform version coding subsequently | ||
| AN82.61-P-0001-05T | |||
| STAR DIAGNOSIS diagnosis system. | *WH58.30-Z-1048-13A | ||
| 20 | Carry out start-up and function test | ||
| 21 | Install remaining parts onto vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 57 15 | FSE 12 hands-free system | 1 |
| B6 787 58 46 | Portable CTEL cradle for Nokia 6220, 6230, 6230i | As required |
| B6 787 58 42 | Portable CTEL cradle for Nokia 6020, 6021 | As required |
| B6 787 58 47 | Portable CTEL cradle for Nokia 6820, 6822 | As required |
| B6 787 58 22 | Portable CTEL cradle for Nokia 6210, 6310, 6310i | As required |
| B6 787 58 35 | Portable CTEL cradle for Nokia 6100, 6610, 66101, 7250i | As required |
| B6 787 58 34 | Portable CTEL cradle for Siemens S65, SP65 | As required |
| B6 787 58 41 | Portable CTEL cradle for Siemens CX65, CXT65, CX65V, CX70, CXT70, CX70V | As required |
| B6 787 58 52 | Portable CTEL cradle for Siemens SK65 | As required |
| B6 787 58 30 | Portable CTEL cradle for Sony Ericsson T610, T630 | As required |
| B6 787 58 36 | Portable CTEL cradle for Sony Ericsson K700i | As required |
| Accessories | Portable CTEL mounting bracket with PSC adapter plug (actual unit ordered depends on customer request, vehicle model and equipment) | 1 |
