Connect wiring harness - AZ82.20-P-0001-02T

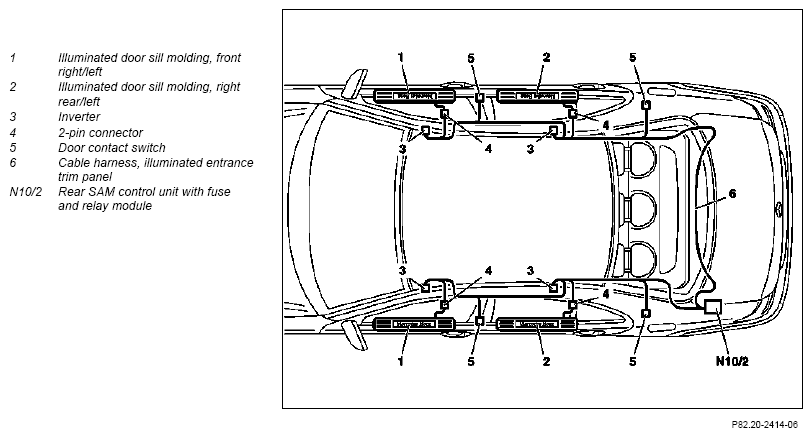

Connection diagram for wiring harness, illuminated door sill molding (4x) as shown on model 211.0

Fig 1: Connection Diagram For Wiring Harness, Illuminated Door Sill Molding (4x)
G07503103Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Connect wiring harness (6) with connection coupling to plug position 27 at rear SAM control unit with fuse and relay module (N10/2).
  2. Put relay (7) onto plug position C and assign fuse (8) on fuse location 5 with a 7.5 A fuse.
    Fig 2: Identifying Relay, Fuse, Wiring Harness And SAM Control Unit With Fuse And Relay Module
    G07503104Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Route wiring harness (6) in trunk along existing leads as shown in figure.
  4. Connect brown ground lead to ground connection (arrow).

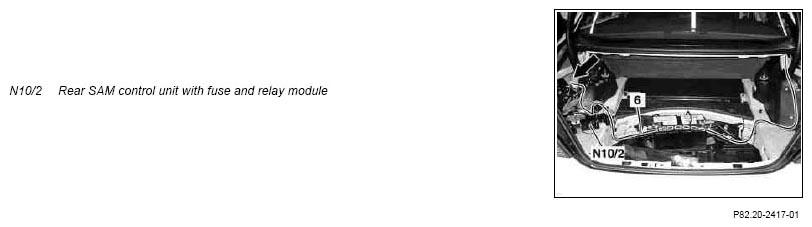

    Fig 3: Identifying Rear SAM Control Unit With Fuse And Relay Module
    G07503105Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  5. Route branch-off line from wiring harness (6) for the illuminated door sill moldings in the cable duct under the left and right rear door (only with 4 door sill moldings).
  6. Attach inverter (3) and route in cable duct.
    Fig 4: Identifying Inverter And Wiring Harness
    G07503106Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  7. Route branch-off line for illuminated door sill molding in cable duct at driver's door, right and left.
  8. Attach inverter (3) and route in cable duct.
    Fig 5: Identifying Inverter
    G04960053Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  9. Put on relevant door sill at every affected door and drill and varnish 6 mm diam. hole (arrow) in weatherstrip fold of sill, level with relevant line terminator.

    IMPORTANT Make hole as far onto lower weatherstrip fold as possible.

    Fig 6: Locating Hole In Weatherstrip Fold Of Sill
    G04960055Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  10. Clip illuminate door sill molding on and route connecting wire (11) through drilled hole.
  11. Insert 2 pins of connecting wire (11) into a connector housing (4) and attach to wiring harness (6).
    Fig 7: Identifying Pins Of Connecting Wire, Connector Housing And Wiring Harness
    G04960056Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  12. Connect the two-color door contact wire to branch-off line of same color in wiring harness (6) using provided clamping connector at each of the doors concerned.

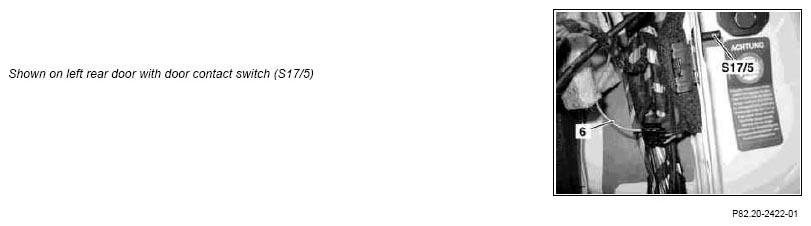

    Fig 8: Identifying Left Rear Door Contact Switch And Wiring Harness
    G07503110Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
