Retrofit antenna for global positioning system (GPS) - AN82.61-P-7474-04TX

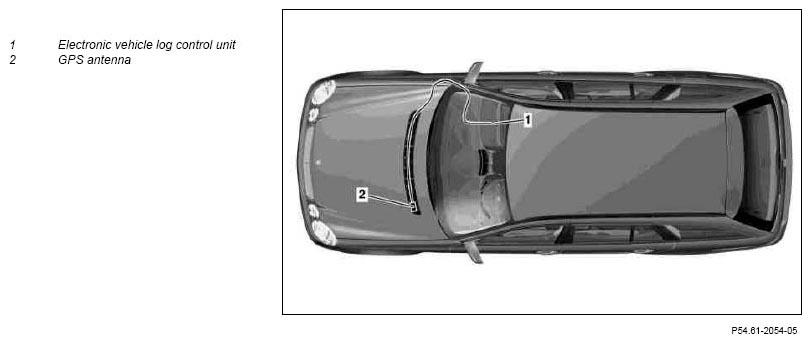

Routing diagram for antenna line

Fig 1: Routing Diagram For Antenna Line

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Make bracket (10) out of a commercially available body replacement panel having a thickness of approx. 0.8 mm as per dimensions.
2. Grind bracket (10), prime and paint matt black (spray can).

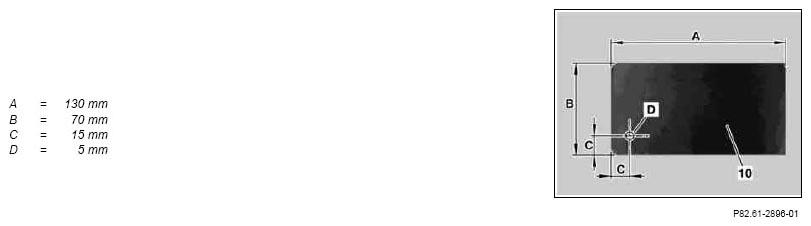

   Fig 2: Identifying Bracket Grinding Dimensions

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Glue felt strips (12) onto the edge of the bracket (10).
4. Glue GPS antenna (2) onto the bracket (10) as per dimensions.
5. Glue on antenna line using felt strips (13).

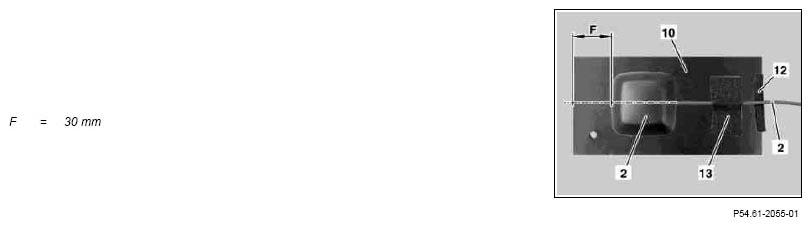

   Fig 3: Identifying Felt Strips And GPS Antenna On Bracket

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

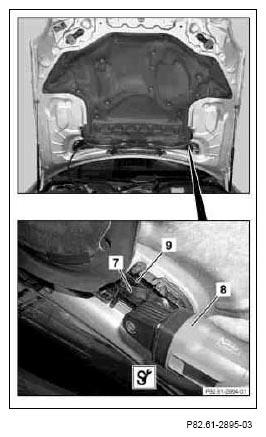

6. Cut off strip (7) flush to the lamellae of the grille (9) using multicutter (8).
   Fig 4: Cutting Grille Strip

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Unclip clips (3) and detach insulating mat (6) in the lower area of the hood.
8. Remove expansion rivets (5) and unclip cover (4) from engine hood.

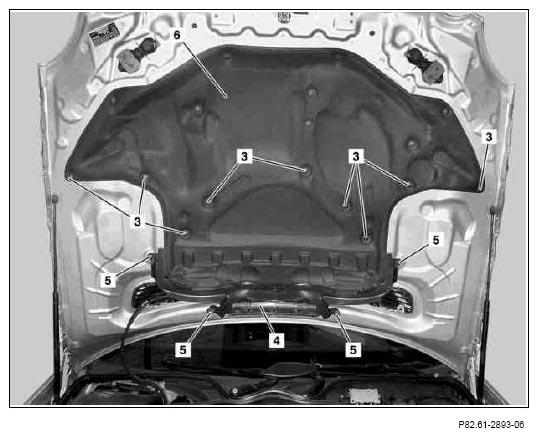

   Fig 5: Identifying Engine Hood Insulating Mat, Clips And Expansion Rivets

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
9. Glue felt strip to both sides of mounting plates (14) on hood.
10. Unscrew screw (15) (is no longer required).
    Fig 6: Identifying Mounting Plates On Hood And Screw

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
11. Insert bracket (10) between mounting plates (14) on hood.
12. Fasten bracket (10) to mounting plate (17) on hood using supplied screw (16), shim and sleeve (24).

    Sleeve (24) serves as a spacer between the bracket (10) and the mounting plate (17).

    Fig 7: Fastening Bracket To Mounting Plate

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
13. Remove expansion rivet (19).
14. Pull filler neck (20) from washer fluid reservoir.
15. Detach radiator tank drain hose (21) and put to one side.
    Fig 8: Identifying Filler Neck, Radiator Tank Drain Hose And Expansion Rivet

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
16. Route antenna line (arrow) of GPS antenna (2) along present wiring and fasten with cable tie.

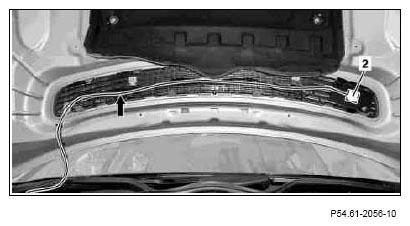

    Fig 9: Routing Antenna Line Of GPS Antenna

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
17. Unclip connector housing (23) from antenna line (arrow).
18. Pry out grommet (22) from inside.
19. Cut off free tab (24) from grommet (22) and guide antenna line through.
20. Seal antenna line in grommet (22) using sealing compound.
21. Install grommet (22).
22. Clip connector housing (23) to antenna line.

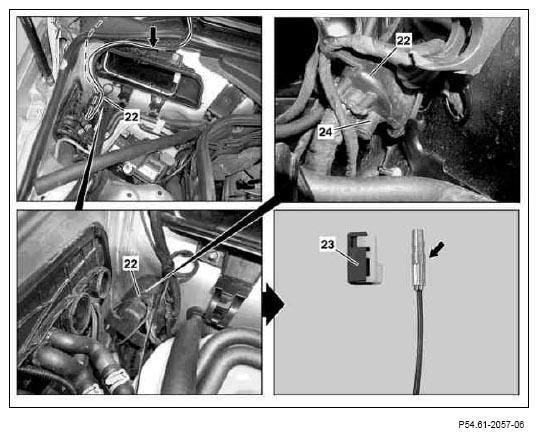

    Fig 10: Identifying Connector Housing And Grommet Free Tab

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

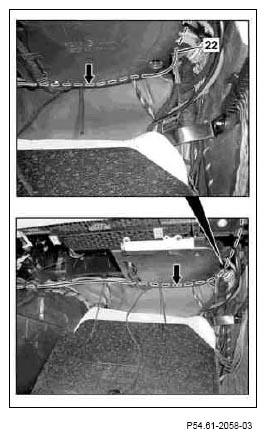

23. Route antenna line (arrow) from grommet (22) along present wiring to glove box and fasten with cable tie.
    Fig 11: Routing Of Antenna Line
