Data link connector, design - GF54.22-P-2100-02T

The data link connector (X11/4) is a 16-pin connector with a plastic housing.

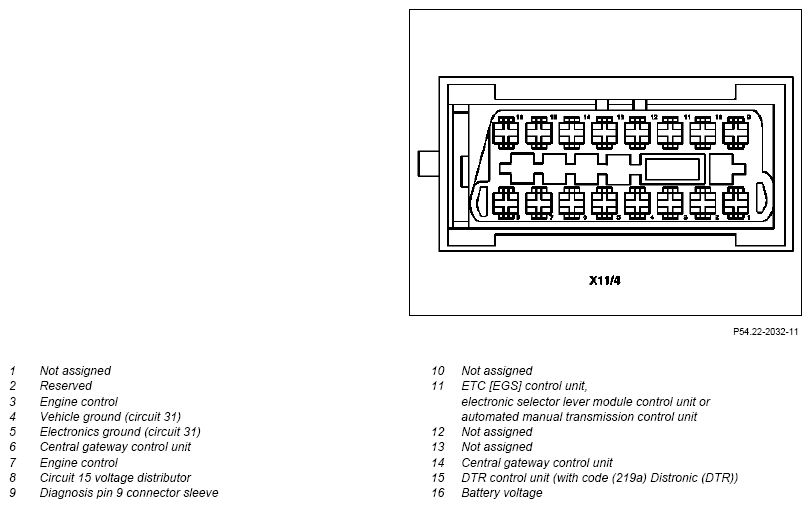

Fig 1: Design Of Data Link Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Pin assignment of data link connector (X11/4):
