Sequential floor shift, function - GF26.60-P-4000-03P

Models 203, 209, 211, 230

Function

The shift lever has "stable" and "unstable" positions.

Stable positions:

• G (basic position)
• N (neutral position)
• R (reverse gear)

Unstable positions

• + (upshift button)
• - (downshift button)
• A/M (autoshift/manual mode button)

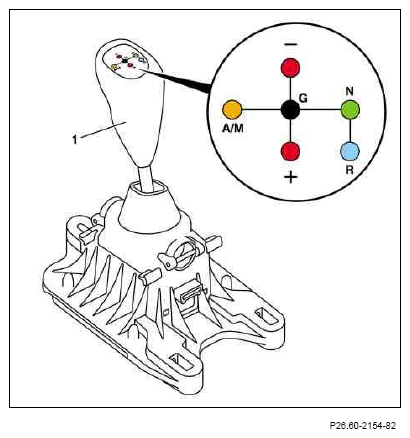

Fig 1: Identifying Sequential Floor Shift Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The driver selects the next gear up by tapping the shift lever in the direction indicated by the "+" symbol. A downshift by one gear is initiated by tapping the shift lever (1) in the direction indicated by the "-" symbol.

The plausibility of the driver's shift request is tested by the automated manual transmission control module (N15/6). When the gearshift has been executed, the gear currently engaged in the transmission is shown in the display in the instrument cluster (A1).
